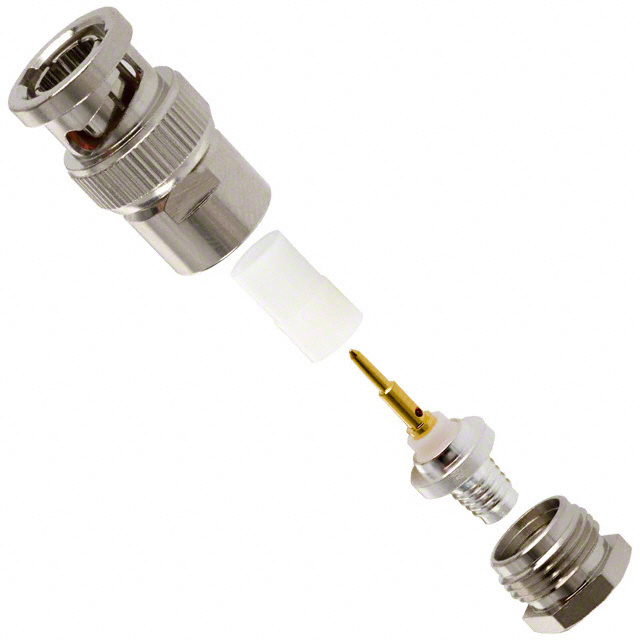

    31-4541-RFX

    Share

    Or copy the link below:

    Mfr.Part #
    31-4541-RFX
    Manufacturer
    Amphenol RF
    Package / Case
    Datasheet
    Download
    Description
    CONN BNC PLUG STR 50 OHM SOLDER
    Stock
    77
    In Stock ：
    77

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    Amphenol RF
    Product Category :
    Coaxial Connector (RF) Assemblies
    MIL Conformance :
    No
    Filter Feature :
    No
    Body Finish :
    Nickel
    Center Contact Plating :
    Gold
    Voltage - Rated :
    500V
    Contact Style :
    COAX
    Mating Information :
    MULTIPLE MATING PARTS AVAILABLE
    IEC Conformance :
    No
    Body Depth :
    0.945 inch
    Connector Type :
    Plug, Male Pin
    Cable Group :
    RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209
    RoHS Status :
    RoHS Compliant
    Includes :
    4 pcs - 1 Connector, 1 Clamp, 1 Contact, 1 Insulator
    Additional Feature :
    APPLICABLE CABLES: RG 59/U; RG 59A/U; RG 62/U; RG 62A/U
    Option :
    GENERAL PURPOSE
    Reach Compliance Code :
    Unknown
    DIN Conformance :
    No
    VSWR :
    1.3
    Connector Style :
    BNC
    Housing Color :
    Silver
    Packaging :
    Bulk
    Moisture Sensitivity Level (MSL) :
    1 (Unlimited)
    Published :
    2003
    Polarity :
    Standard
    Dielectric Material :
    Polyoxymethylene (POM) Acetal
    Factory Lead Time :
    10 Weeks
    Mounting Type :
    Free Hanging (In-Line)
    Reliability :
    COMMERCIAL
    Contact Finish - Mating :
    NOT SPECIFIED
    Insertion Loss :
    0.2dB
    Orientation :
    Straight
    Operating Temperature :
    -65°C~165°C
    Fastening Type :
    Bayonet Lock
    Insulation Material :
    POLYTETRAFLUORO ETHYLENE
    Body Material :
    Brass
    Mating Cycles :
    500
    Number of Ports :
    1
    Contact Termination :
    Solder
    Series :
    Quicktrim®
    Total Number of Contacts :
    1
    Shield Termination :
    Clamp
    Frequency :
    4GHz
    Lead Free :
    Lead Free
    Gender :
    Male
    ECCN Code :
    EAR99
    Mount :
    Cable, Free Hanging
    Impedance :
    50Ohm
    Introducing Coaxial Connector (RF) Assemblies Amphenol RF 31-4541-RFX from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type：Free Hanging (In-Line), Operating Temperature：-65°C~165°C, 31-4541-RFX pinout, 31-4541-RFX datasheet PDF, 31-4541-RFX amp .Beyond Coaxial Connector (RF) Assemblies Amphenol RF 31-4541-RFX ,we also offer A-1JB, CONUFL001-SMD-T, 0734120114, Our vast inventory has you covered. Contact us now for immediate solutions.

    Amphenol RF 31-4541-RFX


    Plug, Male Pin Bayonet Lock 50Ohm Bulk BNC Solder 1 Port Polyoxymethylene (POM) Acetal -65°C~165°C

    31-4541-RFX Overview


    The product comes in a package of Plug, Male Pin.Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the Quicktrim® Series of products.Additionally, there are other features, such as APPLICABLE CABLES: RG 59/U; RG 59A/U; RG 62/U; RG 62A/U.The device is equipped with 1 ports for the management of a variety of tasks.Cable, Free Hanging mounts the part.There is no operating temperature for the device.Performing well when operated at frequency 4GHz can be achieved.

    31-4541-RFX Features


    Quicktrim® series


    31-4541-RFX Applications


    There are a lot of Amphenol RF
    31-4541-RFX Coaxial Connectors applications.


    • Datacom
    • Communication
    • Medical technology
    • Military Technology
    • Measuring & Control Technology
    • Instrumentation
    • Automotive Electronics
    • Telecommunications
    • Data Technology
    • Blowers
