    Images are for reference only.

    Delivery：

    Payment：

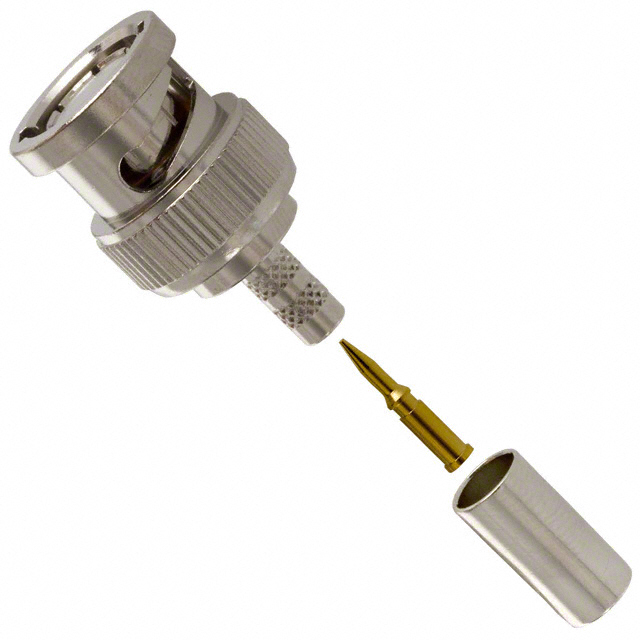

    31-320-RFX

    Share

    Or copy the link below:

    Mfr.Part #
    31-320-RFX
    Manufacturer
    Amphenol RF
    Package / Case
    Datasheet
    Download
    Description
    CONN BNC PLUG STR 50 OHM CRIMP
    Stock
    17
    In Stock ：
    17

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    Amphenol RF
    Product Category :
    Coaxial Connector (RF) Assemblies
    Center Contact Plating :
    Gold
    MIL Conformance :
    No
    IEC Conformance :
    No
    Body Material :
    Brass
    Shield Termination :
    Crimp
    Frequency :
    4GHz
    Fastening Type :
    Bayonet Lock
    Mating Information :
    MULTIPLE MATING PARTS AVAILABLE
    REACH SVHC :
    Unknown
    RoHS Status :
    RoHS Compliant
    Mounting Type :
    Free Hanging (In-Line)
    Option :
    GENERAL PURPOSE
    Connector Type :
    Plug, Male Pin
    Reliability :
    COMMERCIAL
    Connector Style :
    BNC
    Contact Style :
    COAX
    Orientation :
    Straight
    Insulation Resistance :
    5GOhm
    Gender :
    FEMALE
    Total Number of Contacts :
    1
    Width :
    63.5mm
    Polarity :
    Standard
    Voltage - Rated :
    500V
    Housing Color :
    Silver
    Dielectric Material :
    Polyoxymethylene (POM) Acetal
    Operating Temperature :
    -40°C~85°C
    Weight :
    85.048569g
    Insulator Color :
    Natural
    Height :
    9.525mm
    Body Finish :
    Nickel
    Filter Feature :
    No
    Contact Material :
    NOT SPECIFIED
    Published :
    2001
    Factory Lead Time :
    10 Weeks
    Includes :
    3 pcs - 1 Connector, 1 Contact, 1 Ferrule
    Contact Termination :
    Crimp or Solder
    Insulation Material :
    POLYTETRAFLUORO ETHYLENE
    Lead Free :
    Lead Free
    Moisture Sensitivity Level (MSL) :
    1 (Unlimited)
    DIN Conformance :
    No
    Impedance :
    50Ohm
    Cable Group :
    RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
    Contact Finish - Mating :
    NOT SPECIFIED
    Packaging :
    Bulk
    Number of Ports :
    1
    Mating Cycles :
    500
    Length :
    29.8mm
    Diameter :
    14.5mm
    Mount :
    Cable, Free Hanging
    VSWR :
    1.3
    Insertion Loss :
    0.2dB
    Datasheets
    31-320-RFX
    Introducing Coaxial Connector (RF) Assemblies Amphenol RF 31-320-RFX from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type：Free Hanging (In-Line), Operating Temperature：-40°C~85°C, 31-320-RFX pinout, 31-320-RFX datasheet PDF, 31-320-RFX amp .Beyond Coaxial Connector (RF) Assemblies Amphenol RF 31-320-RFX ,we also offer A-1JB, CONUFL001-SMD-T, 0734120114, Our vast inventory has you covered. Contact us now for immediate solutions.

    Amphenol RF 31-320-RFX


    Plug, Male Pin Bayonet Lock 50Ohm Bulk BNC Crimp or Solder 1 Port Polyoxymethylene (POM) Acetal -40°C~85°C

    31-320-RFX Overview


    It comes in a Plug, Male Pin package.Mounting type is Free Hanging (In-Line).To package the product, we use a Bulk case.A variety of tasks can be managed through the 1 ports.Mounted by Cable, Free Hanging.Device runs at -40°C~85°C Operating Temperature.Using a 4GHz frequency, it can be efficiently operated.

    31-320-RFX Features




    31-320-RFX Applications


    There are a lot of Amphenol RF
    31-320-RFX Coaxial Connectors applications.


    • Medical technology
    • Military Technology
    • Measuring & Control Technology
    • Instrumentation
    • Automotive Electronics
    • Telecommunications
    • Data Technology
    • Blowers
    • Control panels
    • Electrical substations
