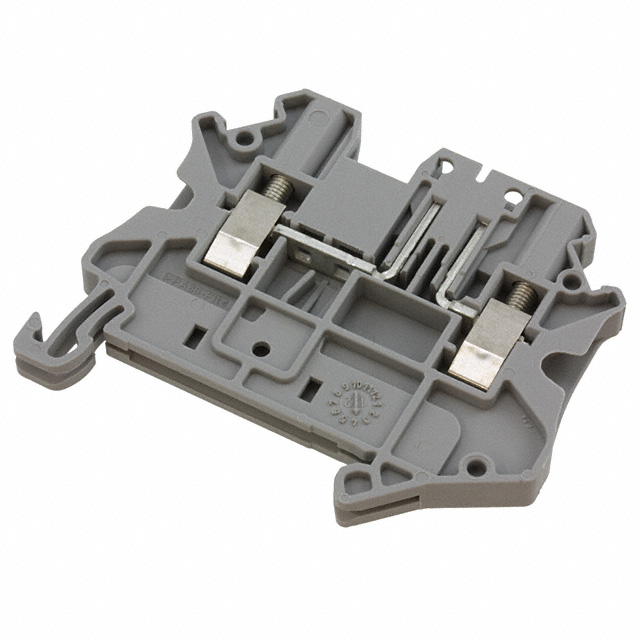

3046388

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Voltage - Rated :

300V

Max Operating Temperature :

120°C

Number of Levels :

1

Disconnect Type :

Open

Type :

Disconnect

Number of Positions :

2

Current Rating :

20A

Width :

5.2mm

Material Flammability Rating :

UL94 V-0

ECCN Code :

EAR99

Wire/Cable Gauge :

12 AWG

Number of Rows :

1

Stripping Length :

9mm

Reach Compliance Code :

Unknown

Pbfree Code :

yes

Height :

55mm

Length :

57.8mm

Approval Agency :

CSA, UL

Published :

2010

Number of Decks :

1

HTS Code :

8536.69.40.40

Series :

CLIPLINE UT

Number of Ways :

2

Additional Feature :

PA, UL 94V-0

Voltage - IEC :

400V

Factory Lead Time :

7 Weeks

Wire Gauge (Max) :

26 AWG

Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Safety Approval :

UL

Voltage :

300V

Weight :

9.99899g

Wire Gauge or Range - AWG :

12-26 AWG

Lead Free :

Lead Free

Pitch :

2.5mm

Wire Gauge or Range - mm² :

1.5 ~ 2.5mm2

Material - Insulation :

Polyamide (PA), Nylon

Color :

Gray

Termination Style :

Screw

Current :

20A

Wire Gauge (Min) :

26 AWG

RoHS Status :

RoHS Compliant
