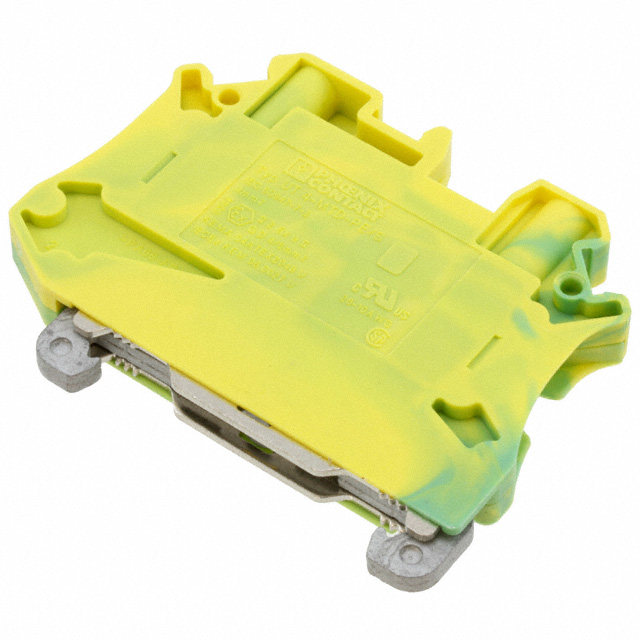

3046207

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Number of Levels :

1

HTS Code :

8536.69.40.40

ECCN Code :

EAR99

Wire/Cable Gauge :

10 AWG

RoHS Status :

RoHS Compliant

Height :

55mm

Number of Rows :

2

Wire Gauge or Range - mm² :

1.5 ~ 2.5mm2

Series :

CLIPLINE UT

Max Operating Temperature :

110°C

Weight :

28.349523g

Wire Gauge (Max) :

26 AWG

Color :

Green, Yellow

Material - Insulation :

Polyamide (PA), Nylon

Min Operating Temperature :

-60°C

Approval Agency :

CB, CSA, UL, VDE

Number of Positions :

2

Published :

2010

Pbfree Code :

yes

Material Flammability Rating :

UL94 V-0

Mount :

Through Hole

Wire Gauge or Range - AWG :

10-26 AWG

Flammability Rating :

UL94 V-0

Safety Approval :

UL; CSA

Termination Style :

Screw

Number of Decks :

1

Moisture Sensitivity Level (MSL) :

Not Applicable

Factory Lead Time :

7 Weeks

Current Rating :

50A

Lead Free :

Lead Free

Length :

57.8mm

Voltage - Rated :

690V

Reach Compliance Code :

Unknown

Type :

Ground, Earth

Width :

6.2mm

Stripping Length :

9mm

Wire Gauge (Min) :

10 AWG
