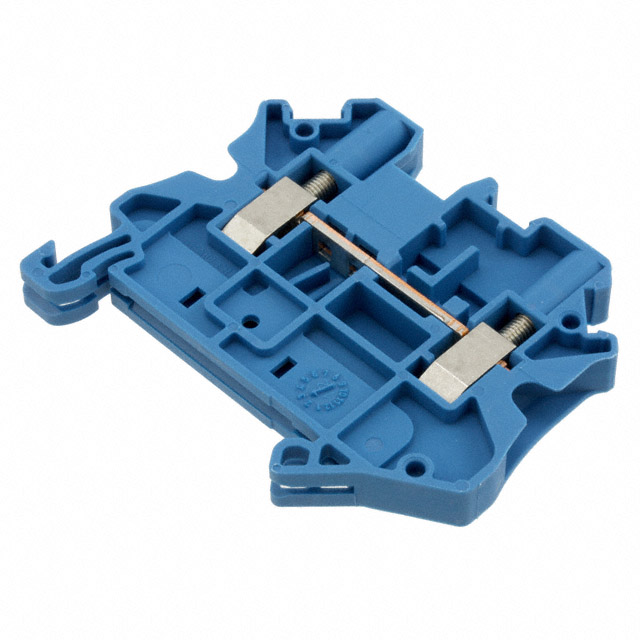

3046197

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Material Flammability Rating :

UL94 V-0

Wire Gauge (Min) :

26 AWG

Termination Style :

Screw

Wire Gauge or Range - AWG :

10-26 AWG

Number of Decks :

1

Weight :

11.410003g

Voltage :

600V

Safety Approval :

UL; CSA

Type :

Feed Through

Number of Rows :

2

Max Operating Temperature :

110°C

Current :

30A

Moisture Sensitivity Level (MSL) :

Not Applicable

Width :

6.2mm

Material - Insulation :

Polyamide (PA), Nylon

RoHS Status :

RoHS Compliant

Housing Material :

Polyamide

Approval Agency :

CB, CSA, UL, VDE, cULus

Length :

57.8mm

Voltage - Rated :

800V

Depth :

6.2mm

ECCN Code :

EAR99

Wire Gauge (Max) :

26 AWG

Stripping Length :

9mm

Max Current Rating :

41A

Wire/Cable Gauge :

10 AWG

Height :

55mm

Wire Gauge or Range - mm² :

1.5 ~ 2.5mm2

Orientation :

Straight

Flammability Rating :

UL94 V-0

Series :

CLIPLINE UT

Current - IEC :

32A

Factory Lead Time :

7 Weeks

HTS Code :

8536.69.40.40

Number of Levels :

1

Min Operating Temperature :

-50°C

Current Rating :

41A

Mount :

Through Hole

Color :

Blue

Published :

2010

Max Supply Voltage :

800V

Pbfree Code :

yes
