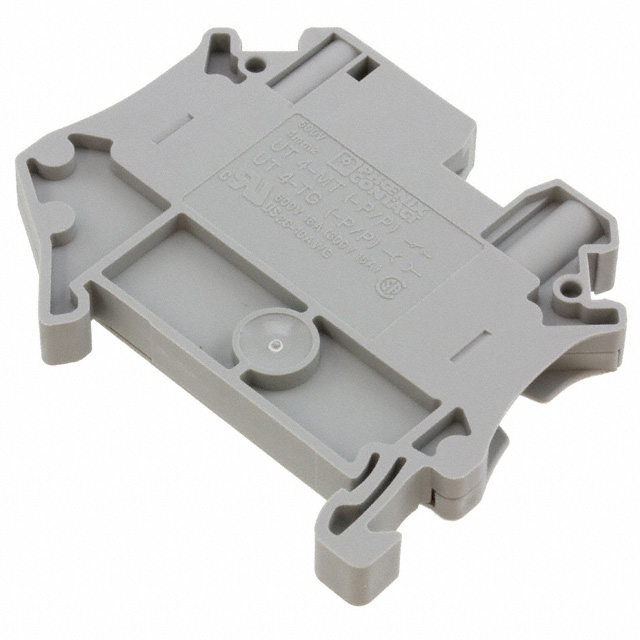

3046142
Or copy the link below:
- Mfr.Part #
- 3046142
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- CONN TERM BLK DISCONN 10-26AWG
- Stock
- 14
- In Stock ：
- 14
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Din Rail, Channel
- Disconnect Type :
- Open
- Safety Approval :
- UL; CSA
- HTS Code :
- 8536.69.40.40
- Stripping Length :
- 9mm
- Height :
- 55mm
- Current Rating :
- 20A
- Flammability Rating :
- UL94 V-0
- Number of Rows :
- 2
- Wire Gauge (Min) :
- 10 AWG
- Published :
- 2008
- Depth :
- 6.2mm
- Pbfree Code :
- yes
- Max Current Rating :
- 20A
- Radiation Hardening :
- No
- Series :
- CLIPLINE UT
- Orientation :
- Straight
- Type :
- Disconnect
- Wire Gauge or Range - mm² :
- 1.5 ~ 2.5mm2
- Number of Decks :
- 1
- Voltage - Rated :
- 500V
- Number of Poles :
- 2
- Voltage - IEC :
- 500V
- Current :
- 16A
- Number of Levels :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Width :
- 6.2mm
- Voltage :
- 600V
- Approval Agency :
- CSA, UL, cULus
- Length :
- 56.8mm
- Material Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 7 Weeks
- Termination Style :
- Screw
- Housing Material :
- Polyamide
- RoHS Status :
- RoHS Compliant
- Wire/Cable Gauge :
- 10 AWG
- Max Supply Voltage :
- 500V
- ECCN Code :
- EAR99
- Wire Gauge or Range - AWG :
- 10-26 AWG
- Wire Gauge (Max) :
- 26 AWG
- Lead Free :
- Lead Free
- Weight :
- 12.88999g
- Material - Insulation :
- Polyamide (PA), Nylon
- Color :
- Gray
- Datasheets
- 3046142
3046142 datasheet pdf and Terminal Blocks - Din Rail, Channel product details from Phoenix Contact stock available at Xinshop
