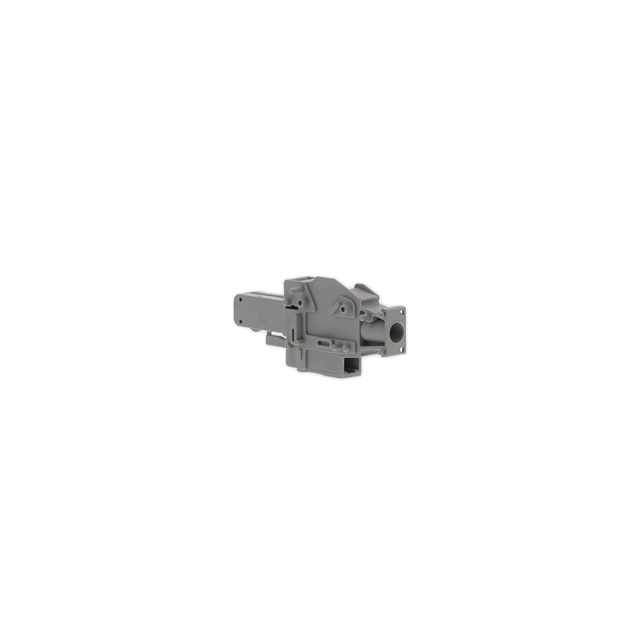

3045774
Or copy the link below:
- Mfr.Part #
- 3045774
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK PLUG 1POS 90DEG
- Stock
- 42
- In Stock ：
- 42
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Headers, Plugs and Sockets
- Packaging :
- Bulk
- Housing Material :
- Polyamide (PA), Nylon
- Reach Compliance Code :
- not_compliant
- Plug Wire Entry :
- 90°
- Height :
- 32.2mm
- Factory Lead Time :
- 4 Weeks
- Screw Size :
- M3
- Torque - Screw :
- 0.6-0.8 Nm (5.3-7.1 Lb-In)
- ECCN Code :
- EAR99
- Insulation Height :
- 1.909 48.50mm
- Material Flammability Rating :
- UL94 V-0
- Current :
- 30A
- Approval Agency :
- CSA, UL
- HTS Code :
- 8536.69.40.40
- Voltage - IEC :
- 800V
- Voltage - Rated :
- 800V
- Width :
- 6.2mm
- Wire Gauge (Min) :
- 10 AWG
- Feature :
- Interlocking (Side)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Levels :
- 1
- Current - IEC :
- 32A
- Mount :
- Free Hanging
- Series :
- CLIPLINE COMBI UPBV
- Pitch :
- 6.2mm
- Color :
- Gray
- Wire Strip Length :
- 9mm
- Mounting Type :
- Free Hanging (In-Line)
- Current Rating :
- 32A
- Wire Gauge (Max) :
- 26 AWG
- Wire Gauge or Range - mm² :
- 1.5 ~ 2.5mm2
- Length :
- 21mm
- Wire Gauge or Range - AWG :
- 10-26 AWG
- Type :
- Plug, Female Sockets
- Termination Style :
- Screw
- Voltage :
- 600V
- RoHS Status :
- RoHS Compliant
- Weight :
- 6.840003g
- Published :
- 2011
- Datasheets
- 3045774
3045774 Documents
Bulk 6.2mm Gray 1 Levels Free Hanging (In-Line) Plug, Female Sockets CLIPLINE COMBI UPBV Polyamide (PA), Nylon
3045774 Overview
Free Hanging (In-Line) is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the CLIPLINE COMBI UPBV Series, it can be found in this category.With its Interlocking (Side) feature, it is more powerful in many ways.In this case, Free Hanging mounts the part.There are a lot of similarities between this part and other Plug, Female Sockets products.
3045774 Features
CLIPLINE COMBI UPBV series
3045774 Applications
There are a lot of Phoenix Contact
3045774 Terminal Blocks applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
