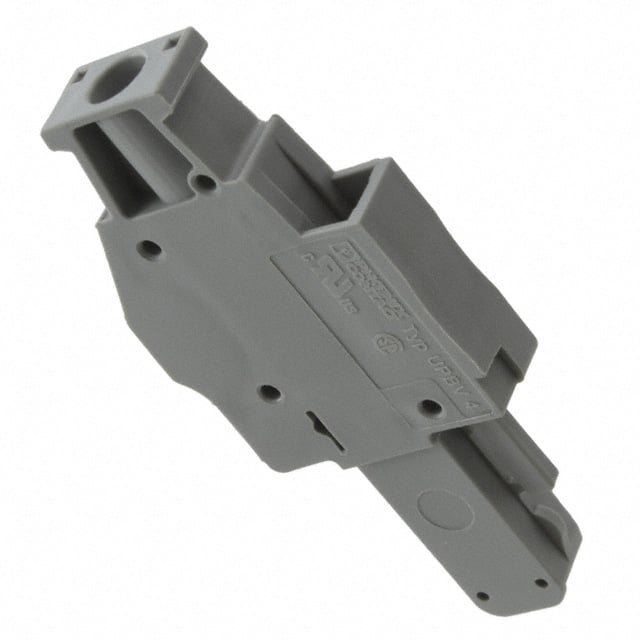

3045716
Or copy the link below:
- Mfr.Part #
- 3045716
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK PLUG 1POS 90DEG
- Stock
- 7
- In Stock ：
- 7
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Headers, Plugs and Sockets
- Number of Levels :
- 1
- RoHS Status :
- RoHS Compliant
- Voltage - Rated :
- 800V
- Published :
- 2010
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Stripping Length :
- 9mm
- Screw Size :
- M3
- Housing Material :
- Polyamide (PA), Nylon
- Material Flammability Rating :
- UL94 V-0
- Wire Gauge or Range - AWG :
- 10-26 AWG
- Voltage :
- 600V
- Packaging :
- Bulk
- Wire Gauge (Max) :
- 26 AWG
- Series :
- CLIPLINE COMBI UPBV
- Type :
- Plug, Female Sockets
- Length :
- 21mm
- Torque - Screw :
- 0.6-0.8 Nm (5.3-7.1 Lb-In)
- Feature :
- Interlocking (Side)
- Insulation Height :
- 1.909 48.50mm
- Approval Agency :
- CSA, UL
- Current Rating :
- 32A
- Weight :
- 6.390011g
- Pitch :
- 6.2mm
- Reach Compliance Code :
- not_compliant
- Termination Style :
- Screw
- Plug Wire Entry :
- 90°
- Current :
- 30A
- Wire Gauge (Min) :
- 10 AWG
- Wire Gauge or Range - mm² :
- 0.14-0.75mm²
- Current - IEC :
- 32A
- Height :
- 32.2mm
- HTS Code :
- 8536.69.40.40
- Width :
- 6.2mm
- ECCN Code :
- EAR99
- Mount :
- Free Hanging
- Factory Lead Time :
- 4 Weeks
- Color :
- Gray
- Mounting Type :
- Free Hanging (In-Line)
- Voltage - IEC :
- 800V
- Datasheets
- 3045716
3045716 Documents
Bulk 6.2mm Gray 1 Levels Free Hanging (In-Line) Plug, Female Sockets CLIPLINE COMBI UPBV Polyamide (PA), Nylon
3045716 Overview
There is a mounting type of Free Hanging (In-Line) for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the CLIPLINE COMBI UPBV Series.In many ways, its Interlocking (Side) feature makes it more powerful.Free Hanging is used to mount the part.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
3045716 Features
CLIPLINE COMBI UPBV series
3045716 Applications
There are a lot of Phoenix Contact
3045716 Terminal Blocks applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
