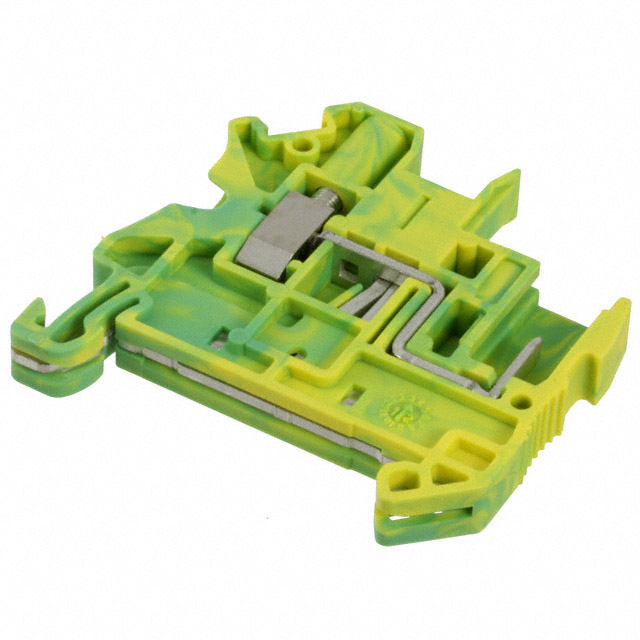

3045606

Manufacturer :

Phoenix Contact

Product Category :

Specialized

Approval Agency :

CB, CSA, KEMA, UL

Housing Color :

Green, Yellow

Termination Style :

Plug Receptacles, Screw

Material - Insulation :

Polyamide (PA), Nylon

RoHS Status :

RoHS Compliant

Number of Decks :

1

Number of Positions :

2

Material Flammability Rating :

UL94 V-0

Wire Gauge or Range - mm² :

0.14-0.75mm²

Reach Compliance Code :

not_compliant

HTS Code :

8536.69.40.40

Number of Ways :

2

Factory Lead Time :

7 Weeks

ECCN Code :

EAR99

Type :

Plug Connection

Series :

CLIPLINE UT

Connector Type :

Screw

Weight :

13.169998g

Number of Levels :

1

Wire Gauge or Range - AWG :

10-26 AWG

Height :

54.991mm

Flammability Rating :

UL94 V-0

Wire Gauge (Min) :

10 AWG

Published :

2008

Color :

Green, Yellow

Safety Approval :

CSA; CUL; GOST; UL

Mounting Type :

DIN Rail

Wire/Cable Gauge :

10 AWG

Width :

6.2mm

Mount :

DIN Rail

Length :

1.874 47.60mm

Stripping Length :

9mm

Additional Feature :

STANDARD: UL 94V-0, PA

Number of Rows :

1

Wire Gauge (Max) :

26 AWG

Moisture Sensitivity Level (MSL) :

Not Applicable
