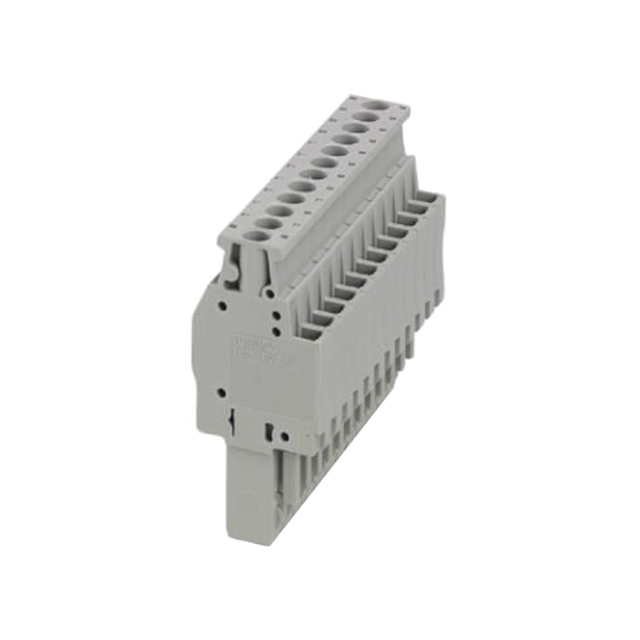

3045512

Share

Or copy the link below:

Mfr.Part #
3045512
Manufacturer
Phoenix Contact
Package / Case
Datasheet
Download
Description
TERM BLOCK PLUG 12POS 90DEG
Stock
11
In Stock :
11

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Phoenix Contact
Product Category :
Headers, Plugs and Sockets
HTS Code :
8536.69.40.40
Length :
20.5mm
RoHS Status :
RoHS Compliant
Screw Size :
M3
Series :
CLIPLINE COMBI UPBV
Plug Wire Entry :
90°
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Wire Strip Length :
9mm
Mounting Type :
Free Hanging (In-Line)
Wire Gauge or Range - mm² :
0.14-0.75mm²
Torque - Screw :
0.5-0.6 Nm (4.4-5.3 Lb-In)
Insulation Height :
1.850 47.00mm
Voltage - IEC :
500V
Height :
47mm
Current Rating :
24A
Packaging :
Bulk
Mount :
Free Hanging
Wire Gauge (Max) :
26 AWG
Wire Gauge or Range - AWG :
12-26 AWG
Published :
2011
Number of Levels :
1
Reach Compliance Code :
not_compliant
Voltage :
600V
Housing Material :
Polyamide (PA), Nylon
Factory Lead Time :
4 Weeks
Termination Style :
Screw
Color :
Gray
ECCN Code :
EAR99
Material Flammability Rating :
UL94 V-0
Width :
62.4mm
Voltage - Rated :
500V
Current :
20A
Number of Positions :
12
Wire Gauge (Min) :
26 AWG
Type :
Plug, Female Sockets
Material :
Polyamide
Current - IEC :
24A
Datasheets
3045512
Introducing Headers, Plugs and Sockets Phoenix Contact 3045512 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), Voltage:600V, Type:Plug, Female Sockets, 3045512 pinout, 3045512 datasheet PDF, 3045512 amp .Beyond Headers, Plugs and Sockets Phoenix Contact 3045512 ,we also offer 1984028, TJ0211530000G, 1945151, Our vast inventory has you covered. Contact us now for immediate solutions.

Phoenix Contact 3045512


Bulk Gray 1 Levels Free Hanging (In-Line) Plug, Female Sockets CLIPLINE COMBI UPBV Polyamide (PA), Nylon

3045512 Overview


Free Hanging (In-Line) indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the CLIPLINE COMBI UPBV Series.By Free Hanging, the part is mounted.It is a part that shares many benefits with other products from the Plug, Female Sockets line.

3045512 Features


CLIPLINE COMBI UPBV series


3045512 Applications


There are a lot of Phoenix Contact
3045512 Terminal Blocks applications.


  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
