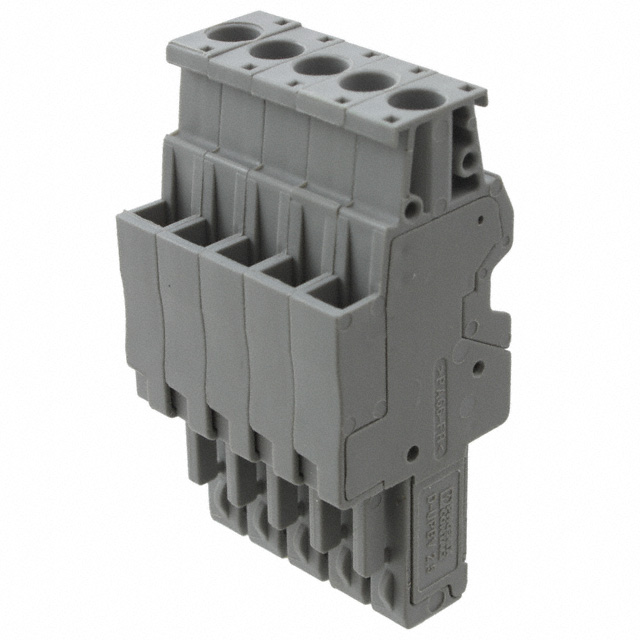

3045431
Or copy the link below:
- Mfr.Part #
- 3045431
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK PLUG 5POS 90DEG
- Stock
- 3,283
- In Stock ：
- 3,283
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Headers, Plugs and Sockets
- Current - IEC :
- 24A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Screw Size :
- M3
- Packaging :
- Bulk
- Wire Gauge or Range - mm² :
- 0.14-0.75mm²
- Material Flammability Rating :
- UL94 V-0
- Series :
- CLIPLINE COMBI UPBV
- Mounting Type :
- Free Hanging (In-Line)
- Plug Wire Entry :
- 90°
- Wire Strip Length :
- 9mm
- Voltage - Rated :
- 500V
- Weight :
- 400.000006g
- Insulation Height :
- 1.850 47.00mm
- Voltage :
- 600V
- Wire Gauge or Range - AWG :
- 12-26 AWG
- Length :
- 21mm
- Wire Gauge (Min) :
- 12 AWG
- Housing Material :
- Polyamide (PA), Nylon
- Voltage - IEC :
- 500V
- Current :
- 20A
- Torque - Screw :
- 0.5-0.6 Nm (4.4-5.3 Lb-In)
- Published :
- 2011
- Wire Gauge (Max) :
- 26 AWG
- Factory Lead Time :
- 4 Weeks
- Type :
- Plug, Female Sockets
- Number of Levels :
- 1
- Color :
- Gray
- ECCN Code :
- EAR99
- Width :
- 26mm
- Current Rating :
- 24A
- Termination Style :
- Screw
- Mount :
- Free Hanging
- Number of Positions :
- 5
- RoHS Status :
- RoHS Compliant
- Datasheets
- 3045431
Bulk Gray 1 Levels Free Hanging (In-Line) Plug, Female Sockets CLIPLINE COMBI UPBV Polyamide (PA), Nylon
3045431 Overview
There is a Free Hanging (In-Line) mounting type for the device.This product is packaged in a case marked Bulk.Product number CLIPLINE COMBI UPBV belongs to the CLIPLINE COMBI UPBV Series.There is a Free Hanging mount on the part.There are a lot of similarities between this part and other Plug, Female Sockets products.
3045431 Features
CLIPLINE COMBI UPBV series
3045431 Applications
There are a lot of Phoenix Contact
3045431 Terminal Blocks applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
