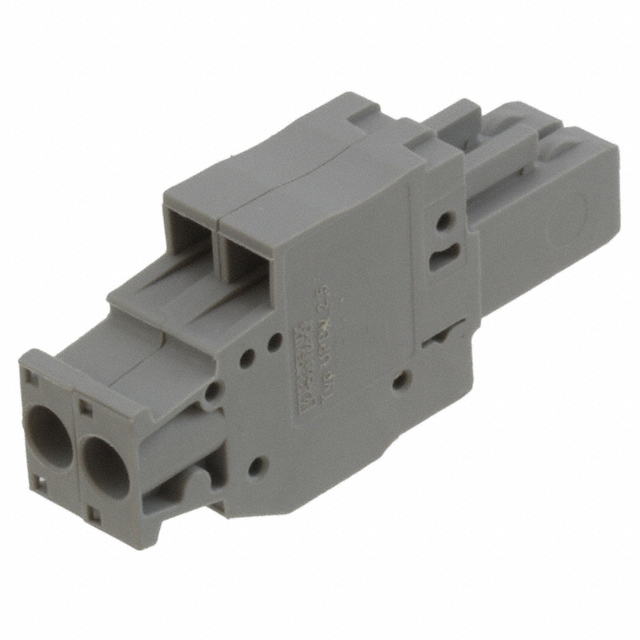

3045402

Share

Or copy the link below:

Mfr.Part #
3045402
Manufacturer
Phoenix Contact
Package / Case
Datasheet
Download
Description
TERM BLOCK PLUG 2POS 90DEG
Stock
7,376
In Stock :
7,376

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Phoenix Contact
Product Category :
Headers, Plugs and Sockets
Wire Gauge or Range - AWG :
12-26 AWG
Type :
Plug, Female Sockets
Wire Gauge (Max) :
26 AWG
Factory Lead Time :
4 Weeks
Pbfree Code :
yes
RoHS Status :
RoHS Compliant
Voltage :
600V
Wire Strip Length :
9mm
Wire Gauge or Range - mm² :
0.14-0.75mm²
Material Flammability Rating :
UL94 V-0
Mounting Type :
Free Hanging (In-Line)
HTS Code :
8536.69.40.40
Plug Wire Entry :
90°
Packaging :
Bulk
Approval Agency :
cULus
Flammability Rating :
UL94 V-0
Current :
20A
Number of Ways :
6
Wire Gauge (Min) :
12 AWG
Mount :
Free Hanging
Current - IEC :
24A
Insulation Height :
1.850 47.00mm
Voltage - Rated :
500V
Number of Rows :
2
Number of Positions :
2
Torque - Screw :
0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Decks :
2
Published :
2011
Material :
Nylon
Safety Approval :
UL
Weight :
1.200205kg
Housing Material :
Polyamide (PA), Nylon
Screw Size :
M3
Reach Compliance Code :
not_compliant
Voltage - IEC :
500V
Color :
Gray
Series :
CLIPLINE COMBI UPBV
Width :
10.4mm
Length :
21mm
ECCN Code :
EAR99
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Number of Levels :
1
Wire/Cable Gauge :
12 AWG
Current Rating :
24A
Termination Style :
Screw
Introducing Headers, Plugs and Sockets Phoenix Contact 3045402 from Chip IC,where excellence meets affordability. This product stands out with its Type:Plug, Female Sockets, Voltage:600V, Mounting Type:Free Hanging (In-Line), 3045402 pinout, 3045402 datasheet PDF, 3045402 amp .Beyond Headers, Plugs and Sockets Phoenix Contact 3045402 ,we also offer 1984028, TJ0211530000G, 1945151, Our vast inventory has you covered. Contact us now for immediate solutions.

Phoenix Contact 3045402


Bulk Gray 1 Levels Free Hanging (In-Line) Plug, Female Sockets CLIPLINE COMBI UPBV Polyamide (PA), Nylon

3045402 Overview


Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the CLIPLINE COMBI UPBV Series.It is mounted by Free Hanging.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.

3045402 Features


CLIPLINE COMBI UPBV series


3045402 Applications


There are a lot of Phoenix Contact
3045402 Terminal Blocks applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
