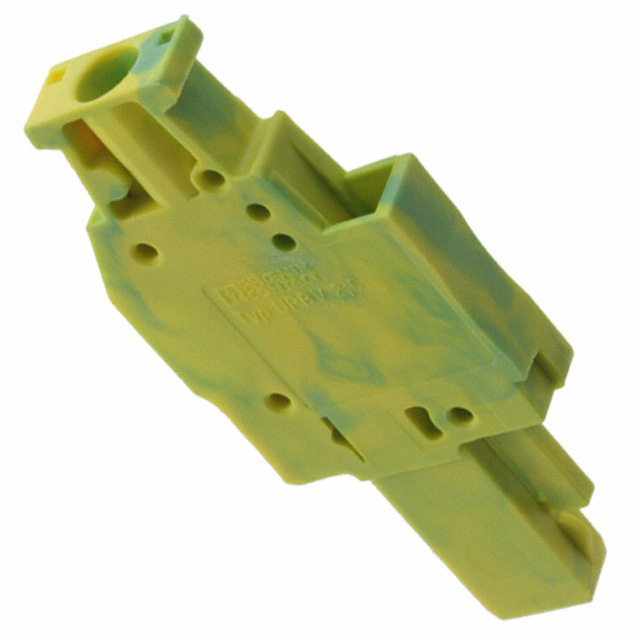

3045253
Or copy the link below:
- Mfr.Part #
- 3045253
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK PLUG 1POS 90DEG
- Stock
- 12
- In Stock ：
- 12
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Headers, Plugs and Sockets
- Number of Levels :
- 1
- Wire Gauge or Range - AWG :
- 12-26 AWG
- Voltage - Rated :
- 500V
- Termination Style :
- Screw
- Length :
- 21mm
- Factory Lead Time :
- 8 Weeks
- Packaging :
- Bulk
- Torque - Screw :
- 0.5-0.6 Nm (4.4-5.3 Lb-In)
- Wire Gauge (Min) :
- 12 AWG
- Wire Gauge or Range - mm² :
- 0.14-0.75mm²
- Mount :
- Free Hanging
- Voltage - IEC :
- 500V
- Series :
- CLIPLINE COMBI UPBV
- Mounting Type :
- Free Hanging (In-Line)
- Current Rating :
- 24A
- Screw Size :
- M3
- Current :
- 20A
- Voltage :
- 600V
- Wire Strip Length :
- 9mm
- Current - IEC :
- 24A
- Reach Compliance Code :
- not_compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Polyamide (PA), Nylon
- Insulation Height :
- 1.850 47.00mm
- Type :
- Plug, Female Sockets
- Width :
- 5.2mm
- Wire Gauge (Max) :
- 26 AWG
- Material Flammability Rating :
- UL94 V-0
- Color :
- Green, Yellow
- Published :
- 2011
- RoHS Status :
- RoHS Compliant
- Plug Wire Entry :
- 90°
- Datasheets
- 3045253
Bulk Green, Yellow 1 Levels Free Hanging (In-Line) Plug, Female Sockets CLIPLINE COMBI UPBV Polyamide (PA), Nylon
3045253 Overview
This device has a Free Hanging (In-Line) mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the CLIPLINE COMBI UPBV Series.There is a mounting hole at Free Hanging.There are many benefits that this part shares with other Plug, Female Sockets products as well.
3045253 Features
CLIPLINE COMBI UPBV series
3045253 Applications
There are a lot of Phoenix Contact
3045253 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
