3044209
Or copy the link below:
- Mfr.Part #
- 3044209
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description

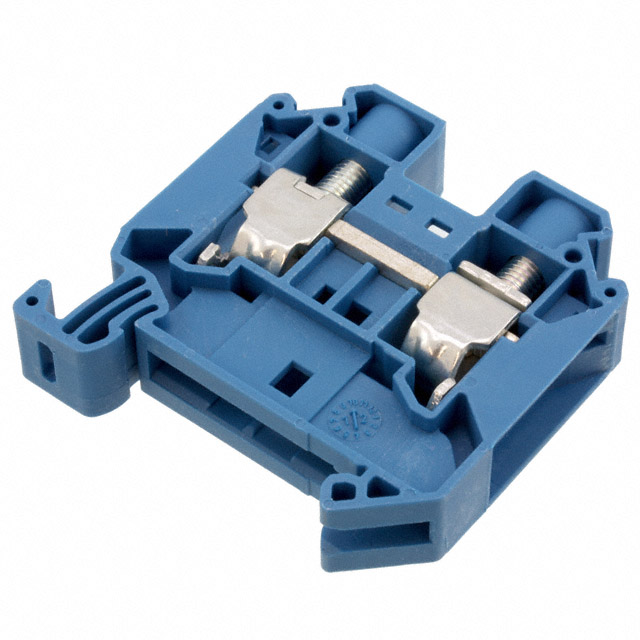

- CONN TERM BLK FEED THRU 4-16 AWG
- Stock
- 50
- In Stock ：
- 50
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Din Rail, Channel
- Voltage - Rated DC :
- 800V
- Material Flammability Rating :
- UL94 V-0
- Material - Insulation :
- Polyamide (PA), Nylon
- Length :
- 55.3mm
- RoHS Status :
- RoHS Compliant
- Terminal Width :
- 12.2mm
- Wire Gauge (Min) :
- 4 AWG
- Factory Lead Time :
- 4 Weeks
- Approval Agency :
- CSA, UL, VDE, cULus
- Voltage - Rated :
- 1kV
- Mount :
- Through Hole
- Pbfree Code :
- yes
- Wire/Cable Gauge :
- 4 AWG
- Voltage - UL :
- 600V
- Termination Style :
- Screw
- Number of Levels :
- 1
- Current :
- 85A
- Current Rating :
- 101A
- Width :
- 12mm
- Voltage :
- 600V
- Current - IEC :
- 76A
- Stripping Length :
- 14mm
- Published :
- 2006
- Wire Gauge or Range - mm² :
- 1.5-25mm2
- Weight :
- 30.129987g
- HTS Code :
- 8536.69.40.40
- Wire Gauge or Range - AWG :
- 4-16 AWG
- Voltage - IEC :
- 1000V
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Flammability Rating :
- UL94 V-0
- Type :
- Feed Through
- Series :
- CLIPLINE UT
- Wire Gauge (Max) :
- 16 AWG
- Color :
- Blue
- Number of Poles :
- 2
- ECCN Code :
- EAR99
- Datasheets
- 3044209
