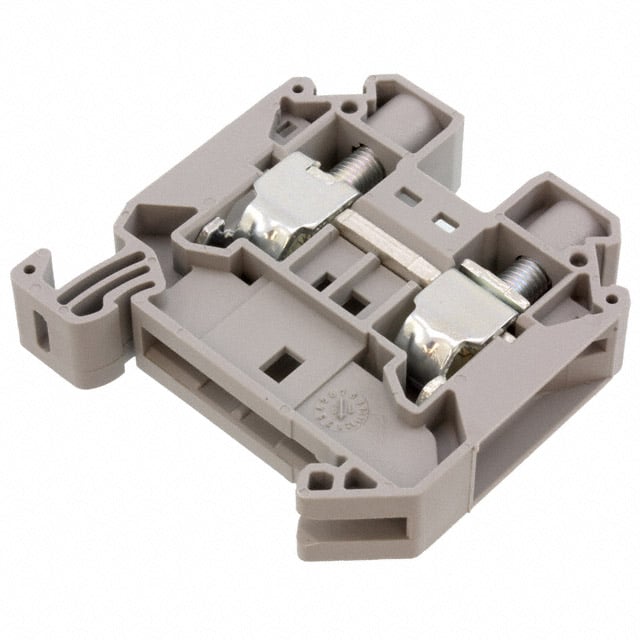

3044199

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Published :

2008

Current - IEC :

76A

Number of Decks :

1

Voltage - UL :

600V

Additional Feature :

STANDARD: UL 94V-0, PA, SAFETY APPROVAL: UL; VDE

Voltage - Rated DC :

800V

Number of Levels :

1

Mount :

Through Hole

RoHS Status :

RoHS Compliant

Max Operating Temperature :

110°C

Series :

CLIPLINE UT

Width :

12mm

Voltage :

600V

ECCN Code :

EAR99

Wire Gauge or Range - mm² :

1.5-25mm2

Pbfree Code :

yes

Number of Poles :

2

Wire Gauge or Range - AWG :

4-16 AWG

Moisture Sensitivity Level (MSL) :

Not Applicable

Wire Gauge (Max) :

16 AWG

Safety Approval :

CB; CSA; CUL; GL; IEC; KEMA

Factory Lead Time :

7 Weeks

HTS Code :

8536.69.40.40

Current :

85A

Type :

Feed Through

Approval Agency :

CSA, UL, VDE, cULus

Terminal Width :

12.2mm

Number of Rows :

1

Voltage - IEC :

1000V

Number of Ways :

2

Material Flammability Rating :

UL94 V-0

Wire Gauge (Min) :

4 AWG

Wire/Cable Gauge :

4 AWG

Length :

55.5mm

Min Operating Temperature :

-50°C

Lead Free :

Lead Free

Stripping Length :

14mm

Weight :

30.080006g

Current Rating :

101A

Voltage - Rated :

1kV

Material - Insulation :

Polyamide (PA), Nylon

Flammability Rating :

UL94 V-0

Max Current Rating :

101A

Termination Style :

Screw

Color :

Gray
