3044173
Or copy the link below:
- Mfr.Part #
- 3044173
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- CONN TERM BLK GROUND 6-20 AWG
- Stock
- 232
- In Stock ：
- 232
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Din Rail, Channel
- Type :
- Ground, Earth
- Current - IEC :
- 57A
- Terminal Width :
- 10.2mm
- Number of Levels :
- 1
- Number of Rows :
- 2
- Orientation :
- Straight
- Number of Poles :
- 2
- Voltage - Rated :
- 800V
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Connector Type :
- Screw
- Length :
- 47.7mm
- Termination :
- Screw
- Height :
- 55mm
- Housing Material :
- Polyamide
- Wire Gauge or Range - mm² :
- 0.5-16mm2
- Max Operating Temperature :
- 110°C
- Depth :
- 10.2mm
- Material - Insulation :
- Polyamide (PA), Nylon
- Material Flammability Rating :
- UL94 V-0
- Weight :
- 28.609999g
- Number of Contacts :
- 2
- RoHS Status :
- RoHS Compliant
- Wire Gauge (Max) :
- 20 AWG
- Flammability Rating :
- UL94 V-0
- Number of Positions :
- 2
- Color :
- Green, Yellow
- Width :
- 10.2mm
- Wire/Cable Gauge :
- 6 AWG
- Series :
- CLIPLINE UT
- Stripping Length :
- 10mm
- Factory Lead Time :
- 7 Weeks
- Lead Free :
- Lead Free
- Wire Gauge or Range - AWG :
- 6-20 AWG
- Current Rating :
- 57A
- Termination Style :
- Screw
- Max Current Rating :
- 76A
- Wire Gauge (Min) :
- 6 AWG
- Number of Circuits :
- 1
- Approval Agency :
- CB, CSA, UL, VDE, cULus
- Min Operating Temperature :
- -50°C
- Published :
- 2008
- Datasheets
- 3044173
3044173 Documents
3044173 datasheet pdf and Terminal Blocks - Din Rail, Channel product details from Phoenix Contact stock available at Xinshop

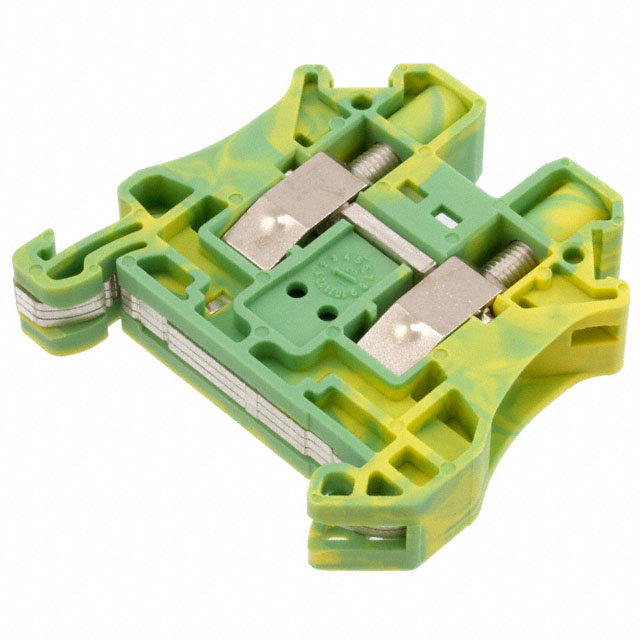

The Phoenix Contact Terminal Blocks - Din Rail, Channel 3044173 are universal terminal blocks with two positions and screw connection. They are designed for use with the Phoenix Contact DIN rail system and feature a 76A current rating. The terminal blocks are made of high-quality materials and are suitable for a wide range of applications.
Features:
• Two positions and screw connection
• Designed for use with Phoenix Contact DIN rail system
• 76A current rating
• High-quality materials
• Suitable for a wide range of applications
Applications:
The Phoenix Contact Terminal Blocks - Din Rail, Channel 3044173 are suitable for a wide range of applications, including industrial automation, power distribution, and control systems. They are also suitable for use in harsh environments, such as in outdoor applications.
