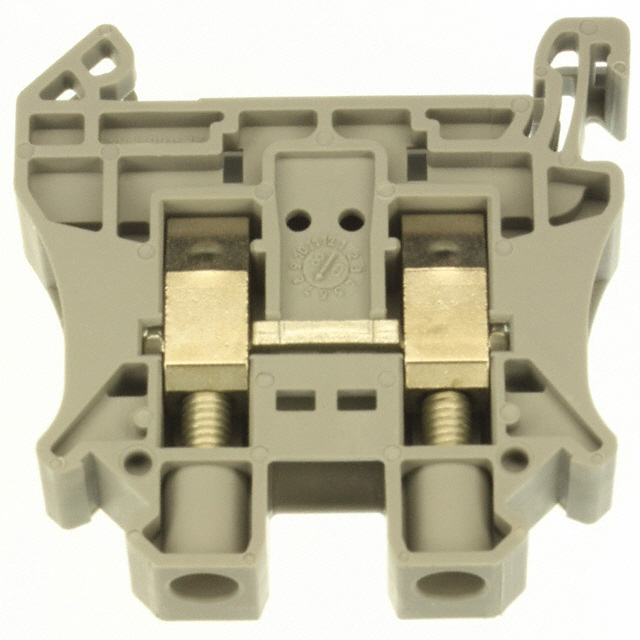

3044160

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Stripping Length :

10mm

Voltage - Rated DC :

800V

Moisture Sensitivity Level (MSL) :

Not Applicable

Current :

65A

Wire Gauge (Max) :

20 AWG

Voltage :

600V

Depth :

10.2mm

Additional Feature :

PA, UL 94V-0, SAFETY APPROVAL VDE

Current Rating :

76A

Max Current Rating :

76A

Max Operating Temperature :

110°C

Series :

CLIPLINE UT

Max Supply Voltage :

1kV

Wire Gauge or Range - mm² :

0.5-16mm2

Pbfree Code :

yes

Number of Poles :

2

Number of Rows :

1

Number of Levels :

1

Termination Style :

Screw

Safety Approval :

CB; CSA; CUL; GL; GOST; LR; UL

Orientation :

Straight

ECCN Code :

EAR99

Wire Gauge (Min) :

20 AWG

RoHS Status :

RoHS Compliant

Height :

55mm

Length :

47.7mm

Voltage - IEC :

1000V

HTS Code :

8536.69.40.40

Wire/Cable Gauge :

6 AWG

Housing Material :

Polyamide

Type :

Feed Through

Min Operating Temperature :

-50°C

Width :

10.2mm

Current - IEC :

57A

Approval Agency :

CB, CSA, UL, VDE, cULus

Color :

Gray

Wire Gauge or Range - AWG :

6-20 AWG

Voltage - Rated :

1kV

Factory Lead Time :

7 Weeks

Number of Decks :

1

Number of Ways :

2

Weight :

17.790006g

Flammability Rating :

UL94 V-0

Published :

2008

Material - Insulation :

Polyamide (PA), Nylon

Material Flammability Rating :

UL94 V-0
