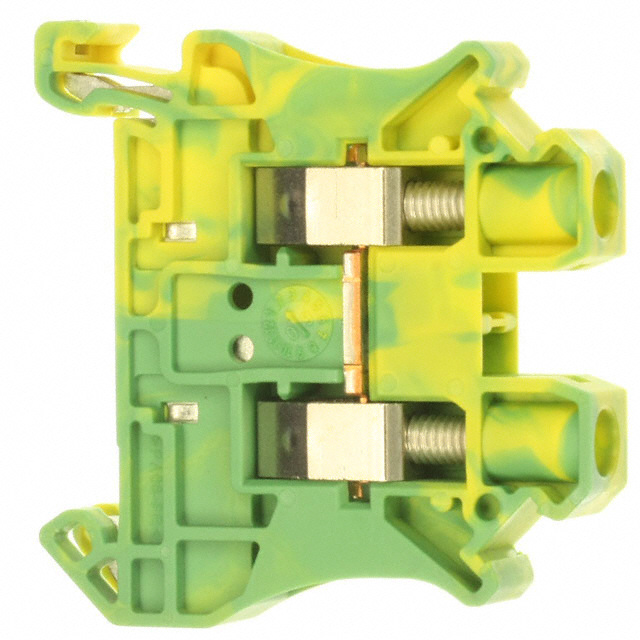

3044157

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Housing Material :

Polyamide

Wire Gauge (Max) :

8 AWG

Color :

Green, Yellow

Safety Approval :

UL; VDE; CSA

Factory Lead Time :

7 Weeks

Wire Gauge or Range - AWG :

8-24 AWG

Published :

2008

Radiation Hardening :

No

Stripping Length :

10mm

Wire Gauge (Min) :

24 AWG

Weight :

21.66g

Approval Agency :

CB, CSA, UL, VDE, cULus

Termination Style :

Screw

Lead Pitch :

8.2mm

Number of Levels :

1

Height :

55mm

Width :

8.2mm

Wire/Cable Gauge :

8 AWG

Number of Decks :

1

Orientation :

Straight

Flammability Rating :

UL94 V-0

Depth :

8.2mm

Current Rating :

41A

Voltage - Rated AC :

400V

Length :

47.7mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Material Flammability Rating :

UL94 V-0

RoHS Status :

RoHS Compliant

Material - Insulation :

Polyamide (PA), Nylon

Max Operating Temperature :

110°C

Number of Ways :

2

HTS Code :

8536.90.40.00

Additional Feature :

PA, UL 94V-0

Pbfree Code :

yes

Type :

Ground, Earth

ECCN Code :

EAR99

Wire Gauge or Range - mm² :

0.2-10mm2

Series :

CLIPLINE UT

Number of Rows :

2

Number of Poles :

2

Min Operating Temperature :

-50°C

REACH SVHC :

No SVHC
