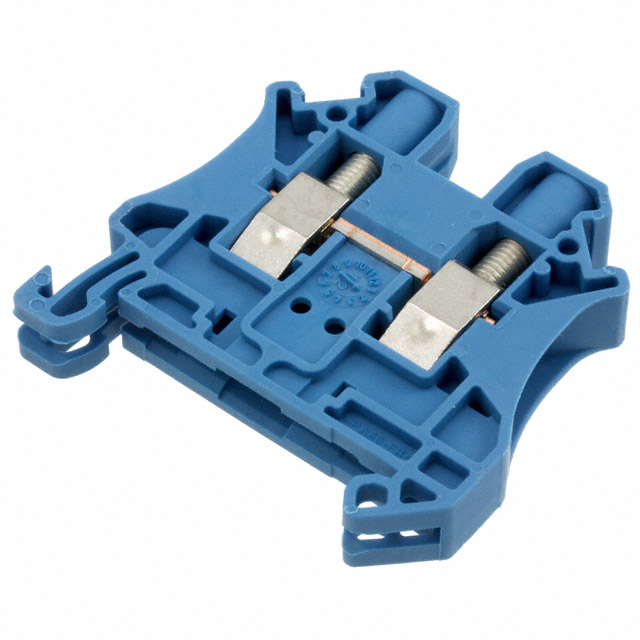

3044144

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Number of Levels :

1

Number of Decks :

1

Current - IEC :

41A

Depth :

8.2mm

Weight :

13.830003g

Moisture Sensitivity Level (MSL) :

Not Applicable

Lead Free :

Lead Free

Length :

47.7mm

Voltage :

600V

Radiation Hardening :

No

Height :

55mm

Number of Poles :

2

Voltage - IEC :

1000V

Width :

8.2mm

Number of Ways :

2

Max Supply Voltage :

1kV

Flammability Rating :

UL94 V-0

Published :

2007

Additional Feature :

PA, UL 94V-0

HTS Code :

8536.69.40.40

Wire Gauge (Max) :

24 AWG

Safety Approval :

UL; VDE; CSA

Stripping Length :

10mm

Number of Rows :

2

Pbfree Code :

yes

Max Operating Temperature :

110°C

Current :

50A

ECCN Code :

EAR99

Series :

CLIPLINE UT

Orientation :

Straight

Material - Insulation :

Polyamide (PA), Nylon

Approval Agency :

CB, CSA, UL, VDE, cULus

Wire/Cable Gauge :

8 AWG

Type :

Feed Through

Factory Lead Time :

7 Weeks

Color :

Blue

Housing Material :

Polyamide

Wire Gauge or Range - AWG :

8-24 AWG

Min Operating Temperature :

-50°C

Current Rating :

41A

Wire Gauge or Range - mm² :

0.2-10mm2

Max Current Rating :

57A

RoHS Status :

RoHS Compliant

Material Flammability Rating :

UL94 V-0

Wire Gauge (Min) :

24 AWG

Voltage - Rated :

1kV

Termination Style :

Screw
