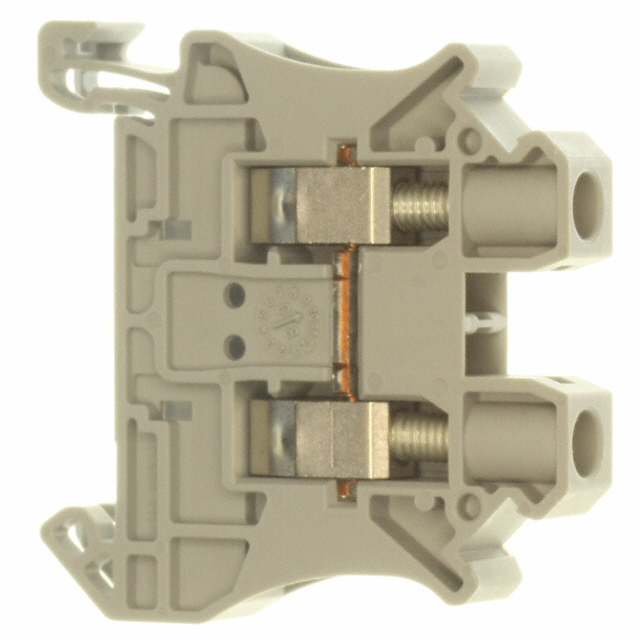

3044131

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Max Current Rating :

57A

Number of Contacts :

1

Number of Positions :

2

Max Operating Temperature :

110°C

Current Rating :

57A

Width :

8.2mm

Number of Decks :

1

Wire Gauge (Max) :

24 AWG

Factory Lead Time :

7 Weeks

Series :

CLIPLINE UT

Flammability Rating :

UL94 V-0

Depth :

8.2mm

Length :

47.7mm

Material - Insulation :

Polyamide (PA), Nylon

Termination Style :

Screw

Voltage :

600V

Min Operating Temperature :

-50°C

Weight :

13.950007g

RoHS Status :

RoHS Compliant

Wire/Cable Gauge :

8 AWG

Current :

50A

Orientation :

Straight

Pbfree Code :

yes

Number of Rows :

2

Max Supply Voltage :

1kV

ECCN Code :

EAR99

Voltage - IEC :

1000V

Lead Pitch :

8.2mm

Color :

Gray

Moisture Sensitivity Level (MSL) :

Not Applicable

Wire Gauge or Range - mm² :

0.2-10mm2

Type :

Feed Through

Housing Material :

Polyamide

Wire Gauge or Range - AWG :

8-24 AWG

Published :

2008

Height :

55mm

Current - IEC :

41A

Voltage - Rated AC :

1kV

Voltage - Rated DC :

800V

Material Flammability Rating :

UL94 V-0

HTS Code :

8536.69.40.40

Wire Gauge (Min) :

8 AWG

Stripping Length :

10mm

Approval Agency :

CB, CSA, UL, VDE, cULus

Radiation Hardening :

No
