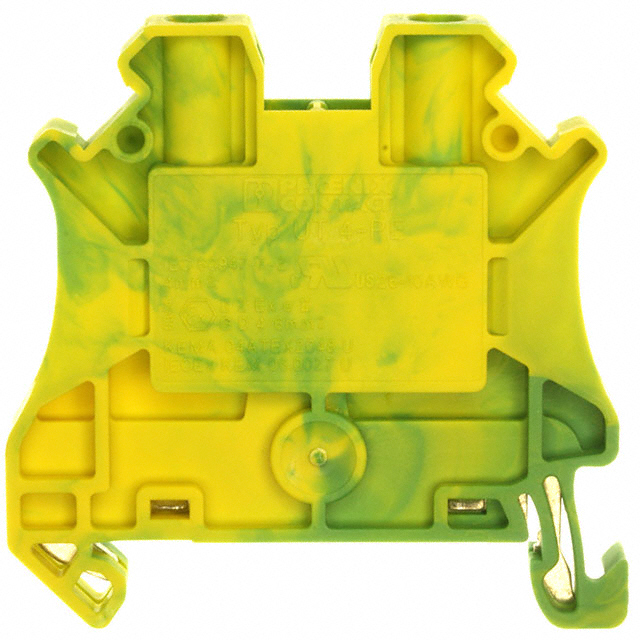

3044128

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Factory Lead Time :

7 Weeks

ECCN Code :

EAR99

Current Rating :

41A

Wire Gauge (Max) :

10 AWG

Voltage - Rated AC :

400V

Approval Agency :

CB, CSA, UL, VDE, cULus

Safety Approval :

UL; CSA

Flammability Rating :

UL94 V-0

Wire Gauge or Range - mm² :

1.5 ~ 2.5mm2

Number of Contacts :

1

Weight :

12.669997g

Width :

6.2mm

Material - Insulation :

Polyamide (PA), Nylon

Series :

CLIPLINE UT

Voltage - Rated :

1kV

Max Operating Temperature :

110°C

Published :

2005

Depth :

6.2mm

Housing Material :

Polyamide

Radiation Hardening :

No

Number of Decks :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Stripping Length :

9mm

Color :

Green, Yellow

RoHS Status :

RoHS Compliant

Lead Pitch :

6.2mm

REACH SVHC :

Unknown

Number of Positions :

2

Material Flammability Rating :

UL94 V-0

Contact Material :

Copper

Height :

55mm

Number of Rows :

2

HTS Code :

8536.69.40.40

Pbfree Code :

yes

Min Operating Temperature :

-50°C

Wire Gauge or Range - AWG :

10-26 AWG

Orientation :

Straight

Length :

47.7mm

Wire Gauge (Min) :

26 AWG

Wire/Cable Gauge :

26 AWG

Termination Style :

Screw

Type :

Ground, Earth
