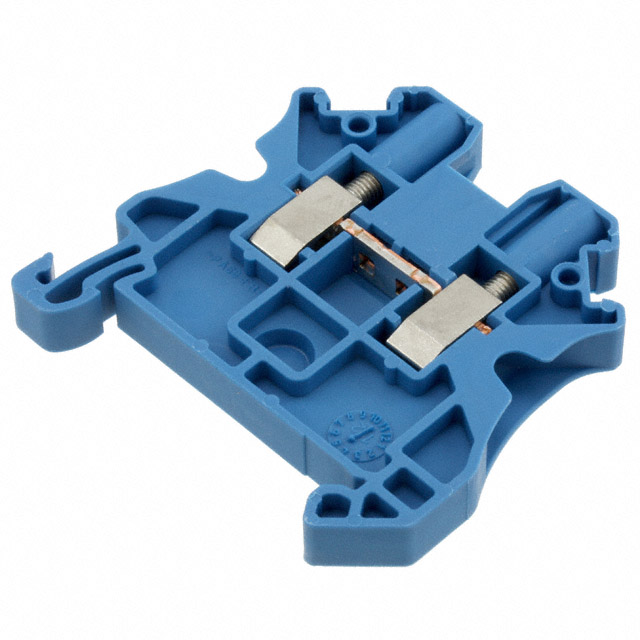

3044115

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Weight :

8.969988g

Termination Style :

Screw

Orientation :

Straight

Wire Gauge or Range - AWG :

10-26 AWG

Length :

47.7mm

Wire Gauge or Range - mm² :

1.5 ~ 2.5mm2

Safety Approval :

UL; CSA

Voltage - IEC :

1000V

Number of Decks :

1

Wire Gauge (Max) :

26 AWG

Wire Gauge (Min) :

10 AWG

Factory Lead Time :

7 Weeks

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

Not Applicable

Stripping Length :

9mm

Contact Material :

Copper

Max Current Rating :

41A

Approval Agency :

CB, CSA, UL, VDE, cULus

Depth :

6.2mm

Flammability Rating :

UL94 V-0

Width :

6.2mm

Voltage - Rated AC :

1kV

HTS Code :

8536.69.40.40

Housing Material :

Polyamide

Material Flammability Rating :

UL94 V-0

Series :

CLIPLINE UT

Published :

2008

Wire/Cable Gauge :

10 AWG

Height :

55mm

Lead Free :

Lead Free

Type :

Feed Through

Max Operating Temperature :

110°C

Number of Poles :

2

Material - Insulation :

Polyamide (PA), Nylon

Pbfree Code :

yes

Number of Levels :

1

Current - IEC :

32A

Number of Rows :

2

Voltage :

600V

Current :

30A

Voltage - Rated DC :

800V

Current Rating :

32A

RoHS Status :

RoHS Compliant

Min Operating Temperature :

-50°C

Max Supply Voltage :

1kV

Color :

Blue
