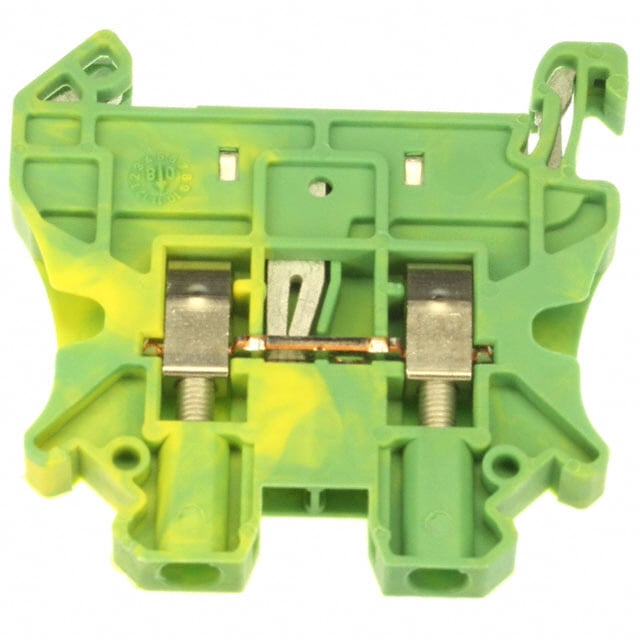

3044092

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Wire/Cable Gauge :

26 AWG

Number of Rows :

2

Voltage - Rated :

1kV

Flammability Rating :

UL94 V-0

Color :

Green, Yellow

Safety Approval :

CB; CSA; CUL; GOST; UL; VDE

Number of Decks :

1

Type :

Ground, Earth

Number of Ways :

2

Orientation :

Straight

RoHS Status :

RoHS Compliant

Depth :

5.2mm

HTS Code :

8536.69.40.40

Lead Pitch :

5.2mm

Series :

CLIPLINE UT

Additional Feature :

STANDARD: UL 94V-0, PA

Current Rating :

32A

Height :

55mm

Approval Agency :

CB, CSA, UL, VDE, cULus

Wire Gauge (Max) :

12 AWG

Stripping Length :

9mm

Length :

47.7mm

Factory Lead Time :

7 Weeks

Wire Gauge or Range - mm² :

1.5 ~ 2.5mm2

Voltage - Rated AC :

400V

Max Current Rating :

32A

Contact Material :

Copper

Number of Positions :

2

Max Operating Temperature :

110°C

REACH SVHC :

No SVHC

Max Supply Voltage :

1kV

Wire Gauge or Range - AWG :

12-26 AWG

Voltage :

600V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Termination Style :

Screw

Mount :

Through Hole

Material - Insulation :

Polyamide (PA), Nylon

Packaging :

Bulk

Housing Material :

Polyamide

Current :

20A

ECCN Code :

EAR99

Width :

5.2mm

Number of Contacts :

1

Weight :

8.000009g

Published :

2005

Min Operating Temperature :

-50°C

Wire Gauge (Min) :

26 AWG

Material Flammability Rating :

UL94 V-0
