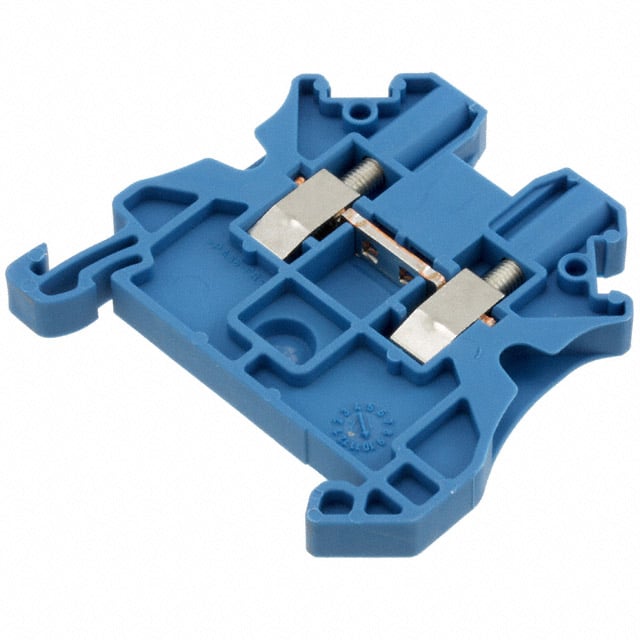

3044089

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Max Supply Voltage :

1kV

Published :

2008

Wire Gauge or Range - mm² :

1.5 ~ 2.5mm2

Current :

20A

Height :

55mm

Voltage :

600V

Pbfree Code :

yes

Voltage - IEC :

1000V

Color :

Blue

HTS Code :

8536.90.40.00

Type :

Feed Through

RoHS Status :

RoHS Compliant

Length :

47.7mm

Max Operating Temperature :

110°C

Housing Material :

Polyamide

Width :

5.2mm

Wire Gauge (Max) :

26 AWG

Packaging :

Bulk

Voltage - Rated :

1kV

Safety Approval :

UL; VDE; CSA

Material Flammability Rating :

UL94 V-0

Flammability Rating :

UL94 V-0

Number of Decks :

1

Min Operating Temperature :

-50°C

Contact Material :

Copper

Number of Rows :

2

Wire Gauge (Min) :

12 AWG

Termination Style :

Screw

Series :

CLIPLINE UT

Number of Poles :

2

Number of Ways :

2

Material - Insulation :

Polyamide (PA), Nylon

Current Rating :

32A

Additional Feature :

PA, UL 94V-0

Wire/Cable Gauge :

12 AWG

Wire Gauge or Range - AWG :

12-26 AWG

Depth :

5.2mm

Current - IEC :

24A

Max Current Rating :

32A

ECCN Code :

EAR99

Weight :

7.319989g

Orientation :

Straight

Factory Lead Time :

7 Weeks

Approval Agency :

CB, CSA, UL, VDE, cULus

Stripping Length :

9mm

Mount :

Through Hole

Number of Levels :

1

Lead Free :

Lead Free

Moisture Sensitivity Level (MSL) :

Not Applicable
