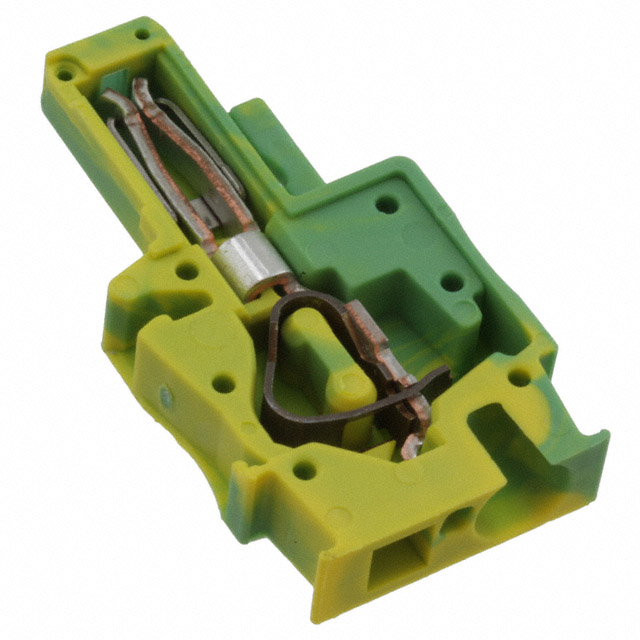

3042777

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Color :

Green, Yellow

HTS Code :

8536.69.40.40

Insulation Height :

1.634 41.50mm

Wire Strip Length :

10mm

Current - IEC :

32A

RoHS Status :

RoHS Compliant

Packaging :

Bulk

Current Rating :

32A

Height :

41.5mm

Weight :

4.329993g

ECCN Code :

EAR99

Wire Gauge (Min) :

10 AWG

Fastening Method :

SPRING LOADED

Voltage - Rated :

800V

Mounting Type :

Free Hanging (In-Line)

Series :

CLIPLINE ST-COMBI SP

Published :

2010

Wire Gauge or Range - mm² :

1.5 ~ 2.5mm2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Plug Wire Entry :

180°

Wire Gauge or Range - AWG :

10-28 AWG

Termination Style :

Screwless - Spring Cage, Tension Clamp

Number of Levels :

1

Type :

Plug, Female Sockets

Voltage :

600V

Termination :

Screwless

Safety Approval :

CB; CSA; CUL; GOST; UL; VDE

Number of Rows :

1

Wire Cross Section :

6 mm2

Additional Feature :

STANDARD: UL 94V-0, PA

Current :

30A

Number of Ways :

1

Material Flammability Rating :

UL94 V-0

Housing Material :

Polyamide (PA), Nylon

Mount :

Free Hanging

Factory Lead Time :

4 Weeks

Voltage - IEC :

800V

Length :

21mm

Connector Type :

IDC, IDT

Width :

6.2mm

Number of Decks :

1

Wire Gauge (Max) :

28 AWG
