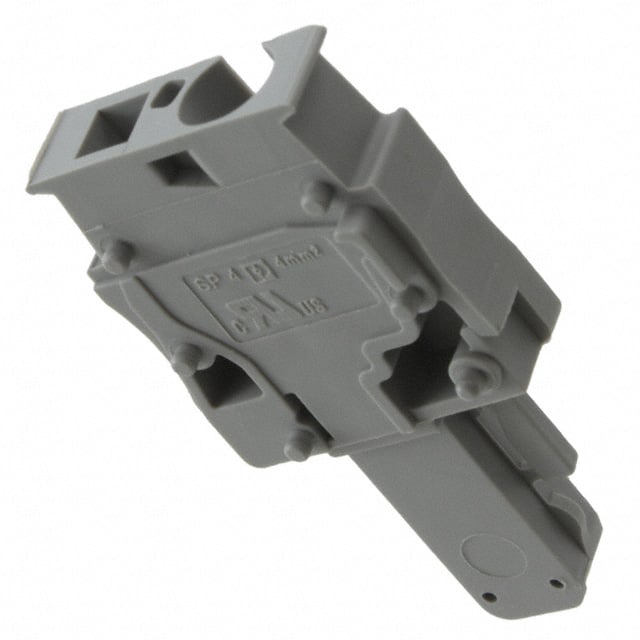

3042751

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Number of Ways :

1

Current :

30A

HTS Code :

8536.69.40.40

Connector Type :

IDC, IDT

Wire Strip Length :

10mm

Safety Approval :

CB; CSA; CUL; GOST; UL; VDE

Width :

6.2mm

Fastening Method :

SPRING LOADED

Wire Cross Section :

6 mm2

Insulation Height :

1.634 41.50mm

Weight :

4.299999g

Wire Gauge or Range - mm² :

1.5 ~ 2.5mm2

Housing Material :

Polyamide (PA), Nylon

Orientation :

Straight

Published :

2010

Series :

CLIPLINE ST-COMBI SP

Number of Rows :

1

Voltage - Rated :

800V

Length :

21mm

Mounting Type :

Free Hanging (In-Line)

Material Flammability Rating :

UL94 V-0

Wire Gauge (Max) :

28 AWG

Mount :

Cable, Free Hanging

RoHS Status :

RoHS Compliant

Wire Gauge (Min) :

10 AWG

Number of Levels :

1

Height :

41.5mm

Plug Wire Entry :

180°

Termination Style :

Screwless - Spring Cage, Tension Clamp

Factory Lead Time :

7 Weeks

Wire Gauge or Range - AWG :

10-28 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Termination :

Screwless

Voltage :

600V

Additional Feature :

STANDARD: UL 94V-0, PA

Max Current Rating :

32A

Packaging :

Bulk

Current Rating :

32A

Voltage - IEC :

800V

Color :

Gray

Type :

Plug, Female Sockets

ECCN Code :

EAR99

Number of Decks :

1
