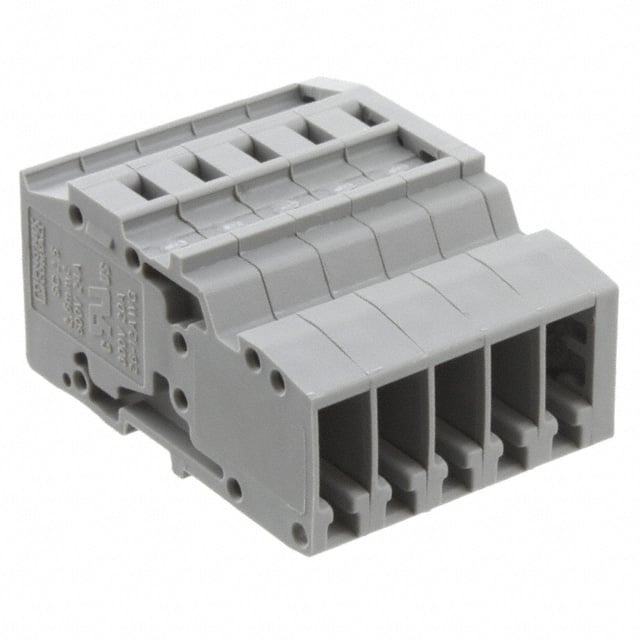

3042285
Or copy the link below:
- Mfr.Part #
- 3042285
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK RCPT 5POS STR
- Stock
- 8,007
- In Stock ：
- 8,007
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Headers, Plugs and Sockets
- Published :
- 2011
- Housing Material :
- Polyamide (PA), Nylon
- Mount :
- Free Hanging
- Number of Positions :
- 5
- Number of Levels :
- 1
- Material Flammability Rating :
- UL94 V-0
- Wire Gauge or Range - mm² :
- 0.08-4mm2
- Width :
- 26mm
- Plug Wire Entry :
- 180°
- Current Rating :
- 24A
- Current :
- 20A
- Series :
- CLIPLINE COMBI SC
- Termination :
- Screwless
- Height :
- 18.8mm
- ECCN Code :
- EAR99
- Feature :
- Coupling
- Type :
- Receptacle, Male Pins
- Lead Free :
- Lead Free
- Weight :
- 14.199993g
- Packaging :
- Bulk
- Wire Gauge (Min) :
- 28 AWG
- Factory Lead Time :
- 6 Weeks
- Termination Style :
- Screwless - Spring Cage, Tension Clamp
- Wire Gauge (Max) :
- 26 AWG
- Mounting Type :
- Free Hanging (In-Line)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length :
- 37.2mm
- Wire Gauge or Range - AWG :
- 12-26 AWG
- Color :
- Gray
- Voltage - Rated :
- 500V
- Current - IEC :
- 24A
- Voltage - IEC :
- 500V
- Voltage :
- 300V
- Wire Strip Length :
- 10mm
- RoHS Status :
- RoHS Compliant
- Insulation Height :
- 0.740 18.80mm
- Datasheets
- 3042285
3042285 Documents
Bulk Gray 1 Levels Free Hanging (In-Line) Receptacle, Male Pins CLIPLINE COMBI SC Polyamide (PA), Nylon
3042285 Overview
This device's mounting type is Free Hanging (In-Line).It's packaged in a Bulk case.CLIPLINE COMBI SC Series product.Its Coupling feature makes it more powerful in a number of ways.Free Hanging is mounting the part.There are a number of benefits that this part has in common with other Receptacle, Male Pins products.
3042285 Features
CLIPLINE COMBI SC series
3042285 Applications
There are a lot of Phoenix Contact
3042285 Terminal Blocks applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
