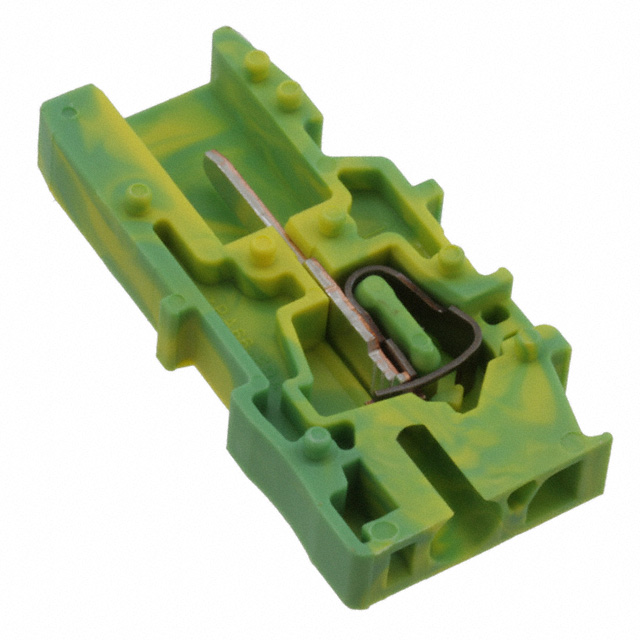

3042201
Or copy the link below:
- Mfr.Part #
- 3042201
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK RCPT 1POS STR
- Stock
- 2,959
- In Stock ：
- 2,959
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Headers, Plugs and Sockets
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Free Hanging (In-Line)
- Width :
- 5.2mm
- Type :
- Receptacle, Male Pins
- Packaging :
- Bulk
- Published :
- 2011
- Weight :
- 2.88g
- Mount :
- Free Hanging
- Termination Style :
- Screwless - Spring Cage, Tension Clamp
- Housing Material :
- Polyamide (PA), Nylon
- Length :
- 37.2mm
- Wire Gauge or Range - AWG :
- 12-26 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating :
- 24A
- Voltage - IEC :
- 500V
- Factory Lead Time :
- 6 Weeks
- Wire Gauge (Min) :
- 12 AWG
- Voltage :
- 300V
- Insulation Height :
- 0.858 21.80mm
- RoHS Status :
- RoHS Compliant
- Current :
- 20A
- Wire Strip Length :
- 10mm
- Series :
- CLIPLINE COMBI SC
- Voltage - Rated :
- 500V
- Color :
- Green, Yellow
- Number of Levels :
- 1
- Plug Wire Entry :
- 180°
- Termination :
- Screwless
- Feature :
- Coupling, Interlocking (Side)
- Wire Gauge or Range - mm² :
- 0.08-4mm2
- Current - IEC :
- 24A
- Wire Gauge (Max) :
- 26 AWG
- Height :
- 21.8mm
- Datasheets
- 3042201
3042201 Documents
Bulk Green, Yellow 1 Levels Free Hanging (In-Line) Receptacle, Male Pins CLIPLINE COMBI SC Polyamide (PA), Nylon
3042201 Overview
This device has a Free Hanging (In-Line) mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the CLIPLINE COMBI SC Series.Several benefits come from the Coupling, Interlocking (Side) feature.There is a mounting hole at Free Hanging.There are many benefits that this part shares with other Receptacle, Male Pins products as well.
3042201 Features
CLIPLINE COMBI SC series
3042201 Applications
There are a lot of Phoenix Contact
3042201 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
