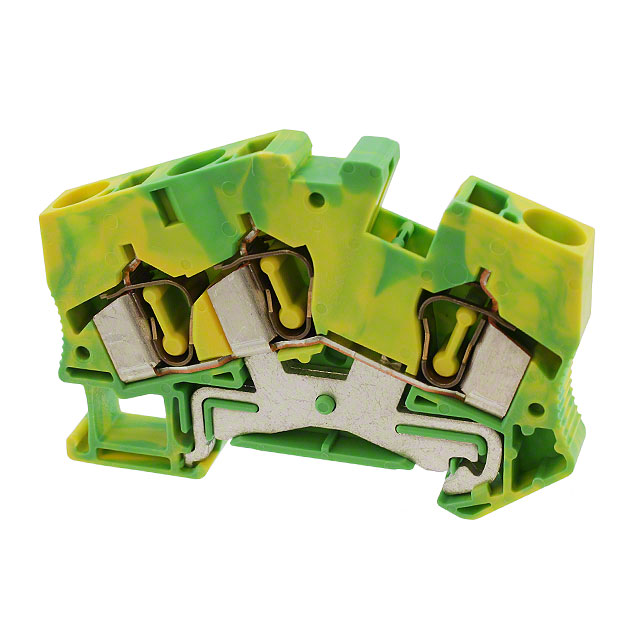

3038176

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Weight :

28.349523g

Number of Decks :

1

Number of Levels :

1

Factory Lead Time :

4 Weeks

Reach Compliance Code :

Unknown

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Safety Approval :

ABS; CB; CSA; CUL; GOST; UL

Fastening Method :

SPRING LOADED

Width :

8.2mm

Number of Rows :

1

Material Flammability Rating :

UL94 V-0

Type :

Ground, Earth

Pbfree Code :

yes

ECCN Code :

EAR99

Number of Ways :

2

Wire Gauge (Min) :

8 AWG

Number of Positions :

3

Height :

57.5mm

Series :

CLIPLINE STS

Flammability Rating :

UL94 V-0

Wire/Cable Gauge :

8 AWG

Wire Gauge (Max) :

24 AWG

Additional Feature :

PA, UL 94V-0

RoHS Status :

RoHS Compliant

Termination Style :

Push In, Spring

Mount :

Through Hole

Termination :

Push-In

Wire Gauge or Range - AWG :

8-24 AWG

Wire Gauge or Range - mm² :

0.2-10mm2

Material - Insulation :

Polyamide (PA), Nylon

Color :

Green, Yellow

Stripping Length :

12mm

Length :

70mm
