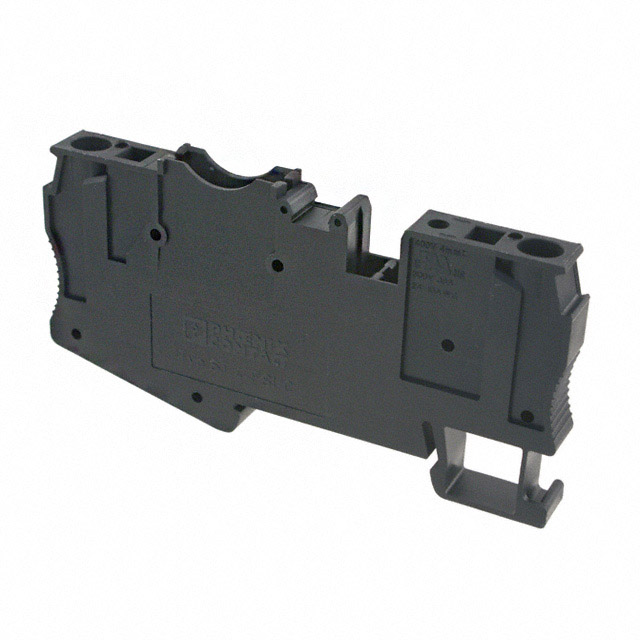

3036372

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

RoHS Status :

RoHS Compliant

Wire Gauge (Min) :

10 AWG

Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

Not Applicable

Number of Rows :

2

Color :

Black

Material - Insulation :

Polyamide (PA), Nylon

REACH SVHC :

No SVHC

Wire Gauge (Max) :

28 AWG

Housing Material :

Polyamide

Voltage :

300V

Max Current Rating :

30A

Terminal Width :

8.2mm

Number of Circuits :

1

Approval Agency :

CSA, UL, cULus

Orientation :

Straight

Disconnect Type :

Fuse, Removable Plug

Height :

51mm

Number of Contacts :

2

Termination Style :

Push In, Spring

Wire/Cable Gauge :

28 AWG

Number of Levels :

1

Material :

Nylon

Number of Poles :

2

Factory Lead Time :

7 Weeks

Packaging :

Bulk

Depth :

8.2mm

Current - UL :

30A

Current :

30A

Wire Gauge or Range - mm² :

1.5 ~ 2.5mm2

Number of Positions :

2

Max Operating Temperature :

60°C

Wire Gauge or Range - AWG :

10-28 AWG

Mount :

DIN Rail

Radiation Hardening :

No

Material Flammability Rating :

UL94 V-0

Min Operating Temperature :

-30°C

Length :

86.5mm

Voltage - UL :

300V

Published :

2010

Current Rating :

30A

Weight :

20.680013g

Stripping Length :

10mm

Type :

Disconnect

Current - IEC :

30A

Max Supply Voltage :

400V

Voltage - Rated :

400V

Voltage - IEC :

400V

Pitch :

8.2mm

Fuse Type :

Blade, C

Width :

8.2mm

Series :

CLIPLINE ST
