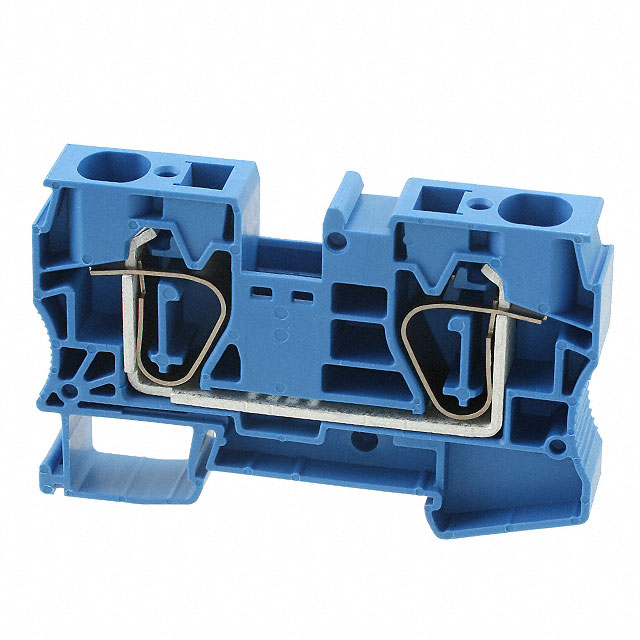

3036152

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Height :

58.5mm

Number of Levels :

1

Series :

CLIPLINE ST

Wire Gauge or Range - mm² :

0.2-25mm2

Width :

12mm

Wire/Cable Gauge :

4 AWG

Lead Free :

Lead Free

Flammability Rating :

UL94 V-0

HTS Code :

8536.69.40.40

Safety Approval :

UL; VDE; CSA

Current :

85A

Number of Poles :

2

Approval Agency :

CB, CSA, UL, VDE, cULus

Length :

80mm

Number of Ways :

2

Housing Material :

Polyamide

ECCN Code :

EAR99

Published :

2005

Fastening Method :

SPRING LOADED

Number of Rows :

2

RoHS Status :

RoHS Compliant

Voltage :

600V

Wire Gauge or Range - AWG :

4-16 AWG

Voltage - UL :

600V

Material Flammability Rating :

UL94 V-0

Termination Style :

Push In, Spring

Wire Gauge (Max) :

16 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Decks :

1

Wire Gauge (Min) :

16 AWG

Pbfree Code :

yes

Voltage - Rated :

800V

Mount :

CABLE

Max Current Rating :

90A

Current - IEC :

76A

Factory Lead Time :

4 Weeks

Current Rating :

90A

Color :

Blue

Terminal Width :

12.2mm

Additional Feature :

PA, UL 94V-0

Stripping Length :

18mm

Weight :

37.69999g

Type :

Feed Through

Material - Insulation :

Polyamide (PA), Nylon
