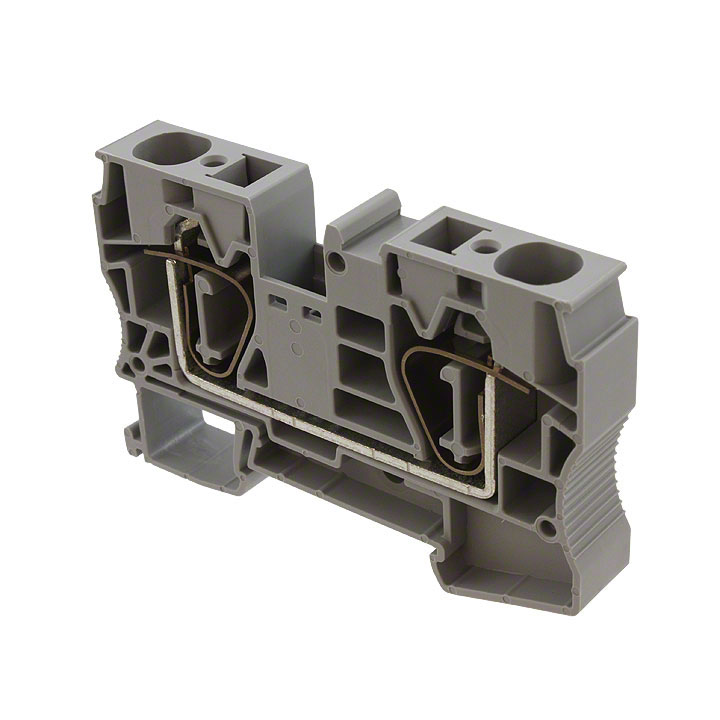

3036149

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Approval Agency :

VDE, cULus

Weight :

37.600001g

Type :

Feed Through

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ECCN Code :

EAR99

Wire Gauge or Range - mm² :

0.2-25mm2

Housing Material :

Polyamide

Material - Insulation :

Polyamide (PA), Nylon

Terminal Width :

12.2mm

Wire Gauge (Min) :

24 AWG

RoHS Status :

RoHS Compliant

Voltage - Rated :

800V

Lead Free :

Lead Free

Max Current Rating :

90A

Number of Decks :

1

Current :

85A

Material Flammability Rating :

UL94 V-0

Wire Gauge or Range - AWG :

4-16 AWG

Current Rating :

90A

Published :

2008

Number of Ways :

2

Number of Levels :

1

Number of Positions :

2

Wire/Cable Gauge :

4 AWG

HTS Code :

8536.69.40.40

Number of Rows :

2

Length :

80mm

Stripping Length :

18mm

Wire Gauge (Max) :

16 AWG

Series :

CLIPLINE ST

Additional Feature :

PA, UL 94V-0

Number of Poles :

2

Mount :

Through Hole

Termination Style :

Push In, Spring

Height :

58.5mm

Depth :

12mm

Safety Approval :

UL; VDE; CSA

Voltage :

600V

Width :

12mm

Flammability Rating :

UL94 V-0

Factory Lead Time :

7 Weeks

Pbfree Code :

yes

Max Supply Voltage :

800V

Color :

Gray

Fastening Method :

SPRING LOADED

Current - IEC :

76A
