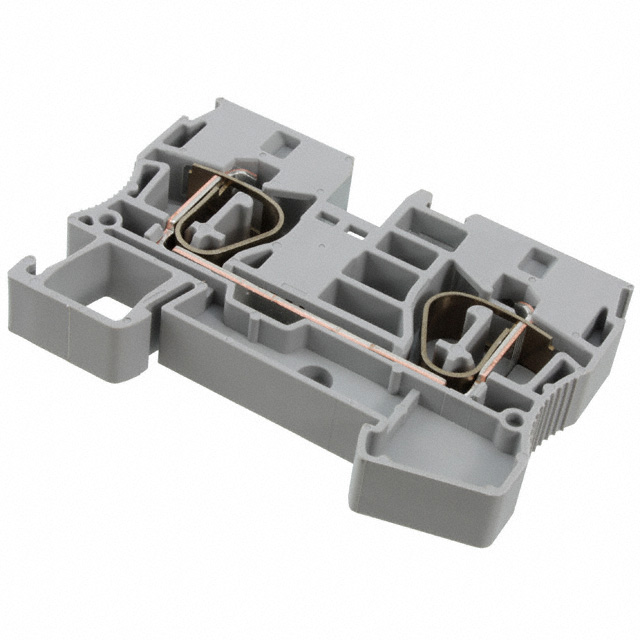

3036110

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Wire Gauge (Max) :

16 AWG

Wire/Cable Gauge :

6 AWG

Width :

10mm

RoHS Status :

RoHS Compliant

Max Current Rating :

65A

Number of Ways :

2

Termination Style :

Push In, Spring

Wire Gauge (Min) :

6 AWG

Lead Free :

Lead Free

Number of Decks :

1

Factory Lead Time :

7 Weeks

Number of Rows :

1

Additional Feature :

PA, UL 94V-0

Mount :

Through Hole

Stripping Length :

18mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2008

Fastening Method :

SPRING LOADED

Approval Agency :

CB, CSA, UL, VDE, cULus

HTS Code :

8536.69.40.40

Pbfree Code :

yes

Voltage - Rated :

800V

Current Rating :

65A

Terminal Width :

10.2mm

Height :

58mm

Current - IEC :

57A

Current :

65A

Voltage - UL :

600V

Flammability Rating :

UL94 V-0

Number of Poles :

2

Type :

Feed Through

Housing Material :

Nylon

Safety Approval :

CB; CSA; CUL; GL; UL; VDE

Weight :

28.349523g

Material Flammability Rating :

UL94 V-0

Length :

71.5mm

Series :

CLIPLINE ST

Number of Levels :

1

Contact Material :

Copper

Wire Gauge or Range - mm² :

0.2-16mm2

Voltage :

600V

Material - Insulation :

Polyamide (PA), Nylon

Color :

Gray

ECCN Code :

EAR99

Wire Gauge or Range - AWG :

6-16 AWG
