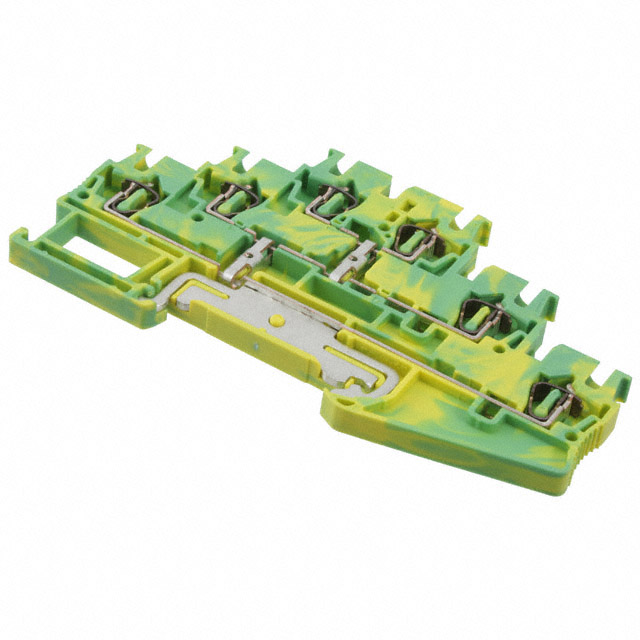

3036071

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Material - Insulation :

Polyamide (PA), Nylon

Number of Levels :

3; Connected

Factory Lead Time :

7 Weeks

Number of Decks :

3

Material Flammability Rating :

UL94 V-0

Approval Agency :

CSA, UL, VDE, cULus

Flammability Rating :

UL94 V-0

Width :

5.2mm

Termination Style :

Push In, Spring

Number of Rows :

3

Additional Feature :

STANDARD: UL 94V-0, PA

Contact Material :

Copper

Moisture Sensitivity Level (MSL) :

Not Applicable

Number of Ways :

6

Wire Gauge (Max) :

28 AWG

Depth :

5.2mm

Number of Poles :

6

Type :

Ground, Earth

Mount :

CABLE

Stripping Length :

10mm

Lead Free :

Lead Free

Length :

99.5mm

Number of Circuits :

1

Height :

65.5mm

RoHS Status :

RoHS Compliant

Wire Cross Section :

4 mm2

Pbfree Code :

yes

Weight :

23.149994g

Wire Gauge or Range - mm² :

0.08-4mm2

Fastening Method :

SPRING LOADED

Wire Gauge or Range - AWG :

12-28 AWG

Wire Gauge (Min) :

12 AWG

Safety Approval :

CB; CSA; CUL; GOST; UL; VDE

Series :

CLIPLINE ST

Published :

2005

Wire/Cable Gauge :

12 AWG

ECCN Code :

EAR99

Packaging :

Bulk

Housing Material :

Polyamide

Voltage - Rated :

6kV

Color :

Green, Yellow
