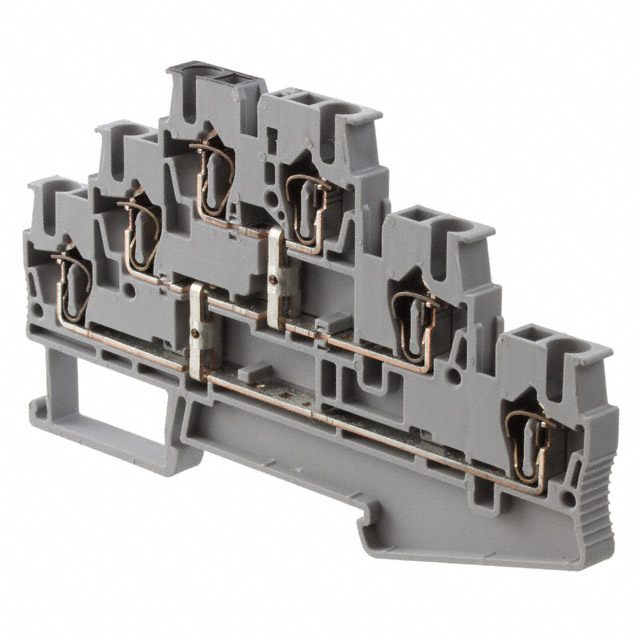

3036068

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Voltage - Rated :

500V

Material - Insulation :

Polyamide (PA), Nylon

Wire Gauge (Min) :

28 AWG

Height :

66.5mm

Number of Rows :

1

Wire/Cable Gauge :

12 AWG

Moisture Sensitivity Level (MSL) :

Not Applicable

Material Flammability Rating :

UL94 V-0

Fastening Method :

SPRING LOADED

Wire Gauge (Max) :

28 AWG

Wire Gauge or Range - mm² :

0.08-4mm2

Current :

20A

Width :

5.2mm

Additional Feature :

STANDARD: UL 94V-0, PA

Weight :

18.790007g

Wire Cross Section :

4 mm2

Lead Free :

Lead Free

Length :

99.5mm

Contact Material :

Copper

Reach Compliance Code :

Unknown

Factory Lead Time :

7 Weeks

Current Rating :

28A

Number of Decks :

3

Number of Ways :

6

RoHS Status :

RoHS Compliant

Termination Style :

Push In, Spring

Number of Positions :

6

Mount :

Through Hole

Voltage :

600V

Color :

Gray

Approval Agency :

CB, CSA, UL, VDE

Housing Material :

Polyamide

Type :

Feed Through

Flammability Rating :

UL94 V-0

Pbfree Code :

yes

Safety Approval :

CB; CSA; CUL; GOST; UL; VDE

ECCN Code :

EAR99

Series :

CLIPLINE ST

Wire Gauge or Range - AWG :

12-28 AWG

Published :

2011

Stripping Length :

10mm

Voltage - IEC :

500V

Number of Levels :

3; Connected
