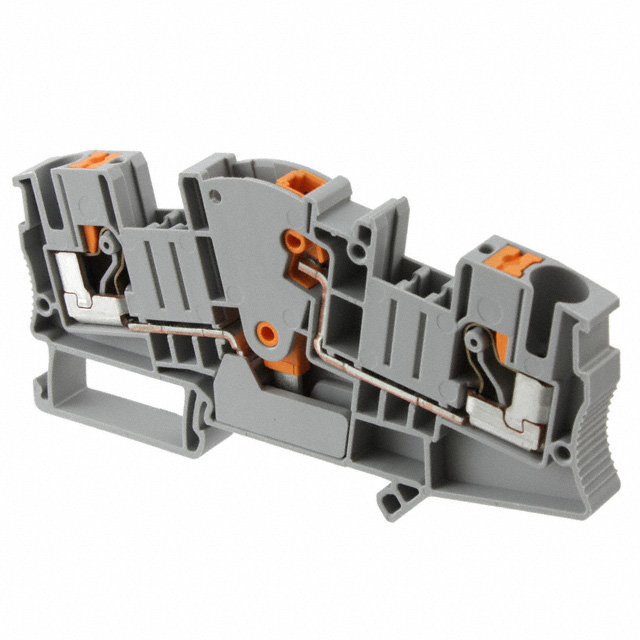

3035696

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Material Flammability Rating :

UL94 V-0

Type :

Disconnect

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2013

Termination Style :

Push In, Spring

Height :

57.1mm

RoHS Status :

RoHS Compliant

Termination :

Push-In

Housing Material :

Polyamide

Number of Positions :

2

Additional Feature :

STANDARD: UL 94V-0; PA

Current Rating :

30A

Number of Levels :

1

Wire Gauge or Range - AWG :

8-20 AWG

Color :

Gray

Number of Rows :

1

Voltage - IEC :

1000V

Length :

100.8mm

Number of Ways :

2

Voltage - Rated :

1kV

Max Operating Temperature :

130°C

Material - Insulation :

Polyamide (PA), Nylon

Voltage :

600V

Stripping Length :

12mm

Disconnect Type :

Switch, Lever

Number of Decks :

1

Safety Approval :

CB; CSA; CUL; EAC; KEMA; UL

Current :

30A

Factory Lead Time :

4 Weeks

Width :

8.2mm

Series :

CLIPLINE PTME

Flammability Rating :

UL94 V-0

Wire Gauge (Max) :

20 AWG

Wire Gauge or Range - mm² :

0.5-10mm2

Wire Gauge (Min) :

8 AWG
