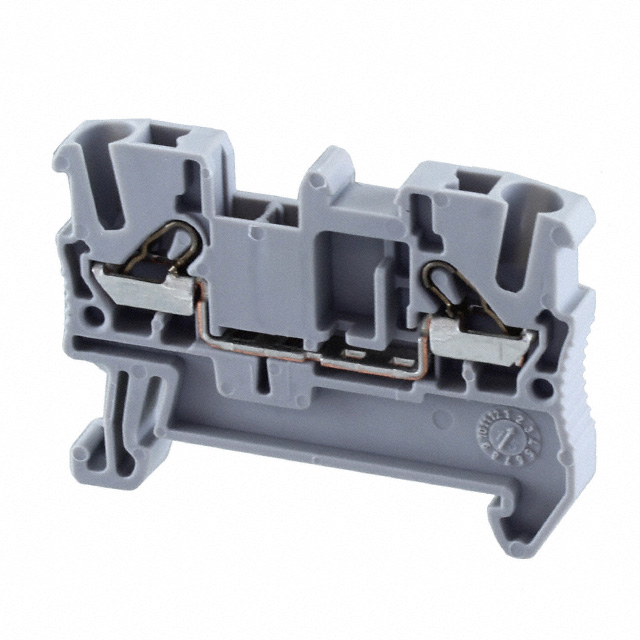

3034028
Or copy the link below:
- Mfr.Part #
- 3034028
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- CONN TERM BLK FEED THRU 12-24AWG
- Stock
- 18,277
- In Stock ：
- 18,277
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Din Rail, Channel
- Color :
- Gray
- Wire Gauge (Max) :
- 24 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Gauge or Range - AWG :
- 12-24 AWG
- Number of Rows :
- 2
- Max Current Rating :
- 24A
- Current :
- 20A
- HTS Code :
- 8536.69.40.40
- Housing Material :
- Polyamide
- Voltage - Rated :
- 800V
- Voltage :
- 600V
- Series :
- CLIPLINE DT
- Width :
- 5.2mm
- Orientation :
- Straight
- Published :
- 2010
- Termination Style :
- Push In, Spring
- Stripping Length :
- 10mm
- Factory Lead Time :
- 3 Weeks
- Material Flammability Rating :
- UL94 V-0
- Depth :
- 5.2mm
- Voltage - IEC :
- 800V
- Number of Levels :
- 1
- Flammability Rating :
- UL94 V-0
- Wire Gauge or Range - mm² :
- 0.2-4mm2
- Length :
- 48.5mm
- ECCN Code :
- EAR99
- Height :
- 36.5mm
- Type :
- Feed Through
- Approval Agency :
- UL, cULus
- RoHS Status :
- RoHS Compliant
- Max Supply Voltage :
- 800V
- Current Rating :
- 24A
- Material - Insulation :
- Polyamide (PA), Nylon
- Wire Gauge (Min) :
- 24 AWG
- Weight :
- 5.939991g
- Datasheets
- 3034028
3034028 datasheet pdf and Terminal Blocks - Din Rail, Channel product details from Phoenix Contact stock available at Xinshop
