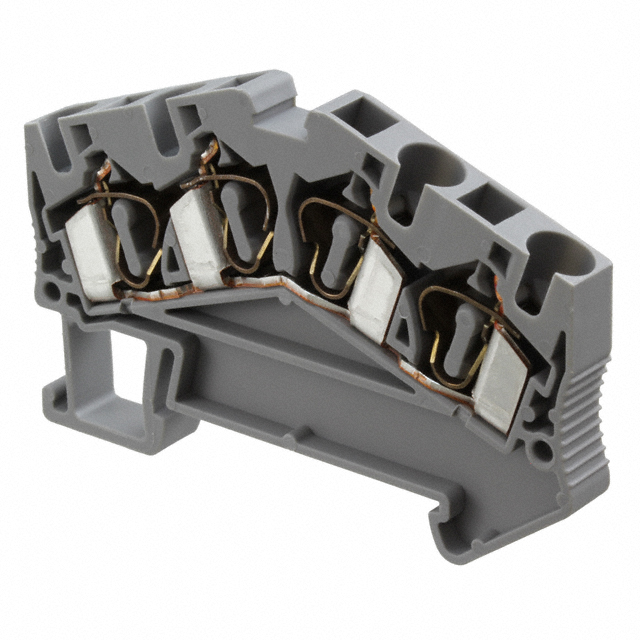

3031681

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Wire Gauge or Range - mm² :

1.5 ~ 2.5mm2

Material - Insulation :

Polyamide (PA), Nylon

Voltage - Rated :

800V

Wire Gauge or Range - AWG :

10-28 AWG

Fastening Method :

SPRING LOADED

Termination Style :

Push In, Spring

Current :

30A

Height :

50.5mm

Material Flammability Rating :

UL94 V-0

Current - IEC :

32A

Flammability Rating :

UL94 V-0

Max Supply Voltage :

800V

Type :

Feed Through

Number of Decks :

1

Wire Gauge (Min) :

10 AWG

Series :

CLIPLINE STS

Wire/Cable Gauge :

10 AWG

Width :

6.2mm

Length :

64.5mm

Published :

2011

ECCN Code :

EAR99

Number of Ways :

4

Approval Agency :

CSA, UL

Number of Rows :

1

Moisture Sensitivity Level (MSL) :

Not Applicable

Max Current Rating :

38A

Pbfree Code :

yes

Wire Cross Section :

6 mm2

Safety Approval :

ABS; ATEX; BV; CCA; CSA; CUL

RoHS Status :

RoHS Compliant

Stripping Length :

10mm

Factory Lead Time :

4 Weeks

Number of Positions :

4

Orientation :

Straight

Mount :

Through Hole

Wire Gauge (Max) :

28 AWG

Weight :

12.399996g

Color :

Gray

Number of Levels :

1

Current Rating :

38A

Housing Material :

Polyamide

Voltage :

600V

Depth :

6.2mm
