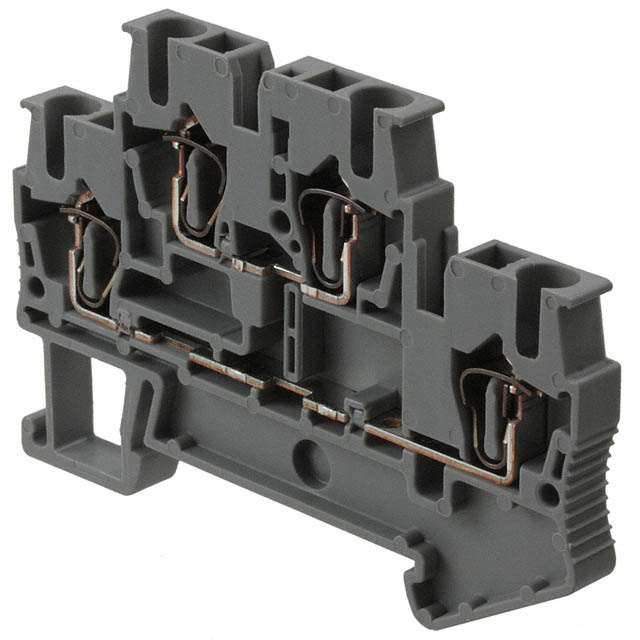

3031270

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Max Operating Temperature :

110°C

Material - Insulation :

Polyamide (PA), Nylon

Current :

20A

Voltage - Rated DC :

500V

ECCN Code :

EAR99

Voltage :

600V

Color :

Gray

Length :

67.5mm

Wire/Cable Gauge :

12 AWG

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

Not Applicable

Factory Lead Time :

7 Weeks

Type :

Feed Through

Termination Style :

Push In, Spring

Number of Levels :

2

Weight :

10.399994g

Wire Gauge or Range - mm² :

0.08-4mm2

Material Flammability Rating :

UL94 V-0

Depth :

5.2mm

Max Current Rating :

22A

Stripping Length :

10mm

Lead Free :

Lead Free

Min Operating Temperature :

-50°C

Voltage - Rated :

500V

Published :

2008

Width :

5.2mm

Fastening Method :

SPRING LOADED

Series :

CLIPLINE STTB

Radiation Hardening :

No

Mount :

CABLE

Wire Gauge (Min) :

12 AWG

Max Supply Voltage :

500V

Flammability Rating :

UL94 V-0

Packaging :

Bulk

Number of Poles :

4

Current Rating :

22A

Wire Gauge (Max) :

28 AWG

Wire Gauge or Range - AWG :

12-28 AWG

Approval Agency :

CB, CSA, UL, VDE, cULus

Number of Circuits :

1

Height :

55mm

RoHS Status :

RoHS Compliant

Housing Material :

Polyamide
