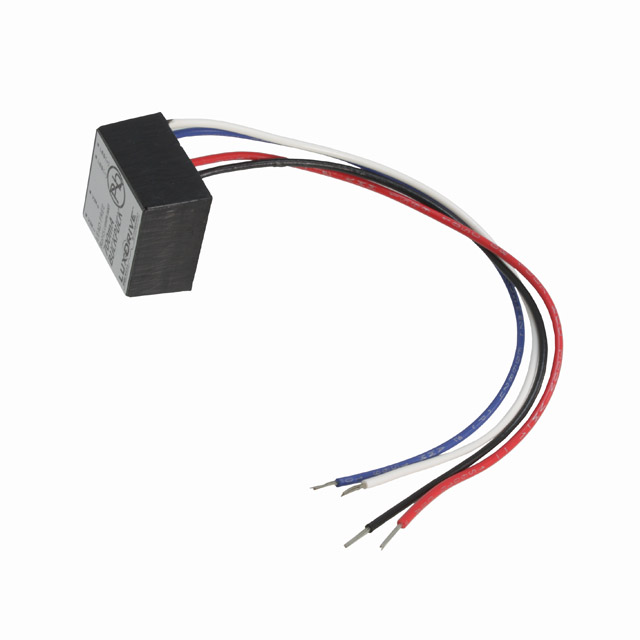

3023-D-N-700

Manufacturer :

LEDdynamics, Inc.

Product Category :

Topology :

Buck

Series :

BuckPuck™ 3021/3023

Published :

2013

Termination :

Wire Leads

Voltage - Input (Max) :

32V

Voltage - Input (Min) :

5V

Max Input Voltage :

32V

Operating Temperature :

-40°C~80°C

Voltage - Output :

32V Max

Efficiency :

95%

Factory Lead Time :

6 Weeks

Length :

21.0058mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Type :

Constant Current

Termination Style :

Wire Leads

Mounting Type :

Chassis Mount

Min Input Voltage :

5V

Power (Watts) :

22W

Size / Dimension :

0.827Lx0.827W 21.00mmx21.00mm

Max Operating Temperature :

80°C

Max Power Dissipation :

22W

Feature :

SCP

Number of Outputs :

1

Min Operating Temperature :

-40°C

RoHS Status :

RoHS Compliant

Current - Output (Max) :

700mA

Mount :

Chassis Mount

Width :

21.0058mm

Max Output Current :

700mA
