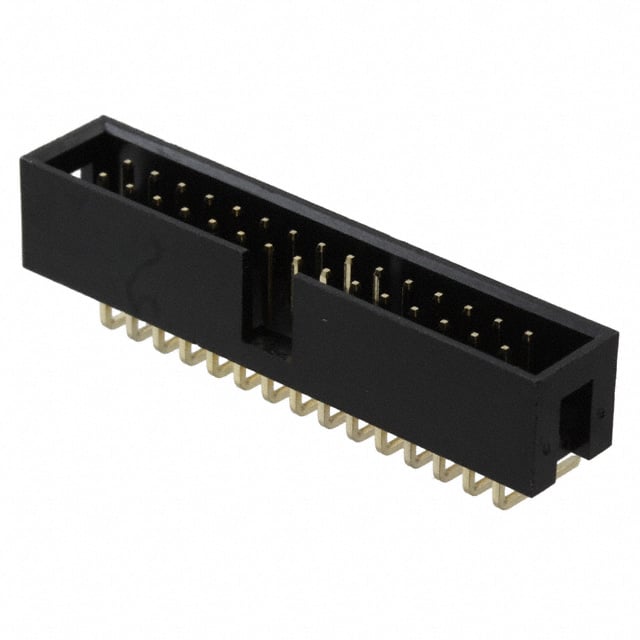

302-R301
Or copy the link below:
- Mfr.Part #
- 302-R301
- Manufacturer
- On-Shore Technology, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 30POS 2.54MM
- Stock
- 927
- In Stock ：
- 927
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- On-Shore Technology, Inc.
- Product Category :
- Headers, Male Pins
- Packaging :
- Tray
- Insulation Material :
- Polyester, Glass Filled
- Mount :
- Through Hole
- Contact Material :
- Brass
- Voltage - Rated :
- 250V
- Body Depth :
- 0.508 inch
- Pitch - Mating :
- 0.100 2.54mm
- Current Rating (Amps) :
- 3A
- Contact Finish Thickness - Post :
- 1.25μin 0.032μm
- Reference Standard :
- UL
- Body Length or Diameter :
- 1.8 inch
- PCB Contact Pattern :
- RECTANGULAR
- Number of Conductors :
- ONE
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Material Flammability Rating :
- UL94 V-0
- Number of Positions Loaded :
- All
- Dielectric Withstanding Voltage :
- 1500VAC V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- Keying Slot
- Polarization Key :
- POLARIZED HOUSING
- Factory Lead Time :
- 8 Weeks
- Insulation Height :
- 0.358 9.10mm
- Fastening Type :
- Push-Pull
- Contact Length - Post :
- 0.122 3.10mm
- Contact Shape :
- Square
- Number of Positions :
- 30
- Mating Contact Pitch :
- 0.1 inch
- Number of Rows :
- 2
- Connector Type :
- Header
- Shrouding :
- Shrouded - 4 Wall
- Insulation Resistance :
- 1000000000Ohm
- Contact Finish Thickness - Mating :
- Flash
- Contact Type :
- Male Pin
- Number Of PCB Rows :
- 2
- Termination :
- Solder
- Operating Temperature :
- -40°C~105°C
- Insulation Color :
- Black
- Mounting Type :
- Through Hole, Right Angle
- Contact Finish - Mating :
- Gold
- Style :
- Board to Cable/Wire
- Body Breadth :
- 0.358 inch
- Reliability :
- COMMERCIAL
- Series :
- 302
- RoHS Status :
- ROHS3 Compliant
- Datasheets
- 302-R301
302-R301 Documents
302 Series 2-Row Header Solder Brass Tray Through Hole, Right Angle Gold Polyester, Glass Filled 30-Position Board to Cable/Wire 0.358 9.10mm Height
302-R301 Overview
A Header package is included with it.Its mounting type is Through Hole, Right Angle.Packaging is performed using a Tray case.It is part of the 302 Series of products.A number of features make it more powerful because of its Keying Slot feature.Through Hole mounts the part.There is no operating temperature for the device.
302-R301 Features
302 series
302-R301 Applications
There are a lot of On Shore Technology Inc.
302-R301 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
