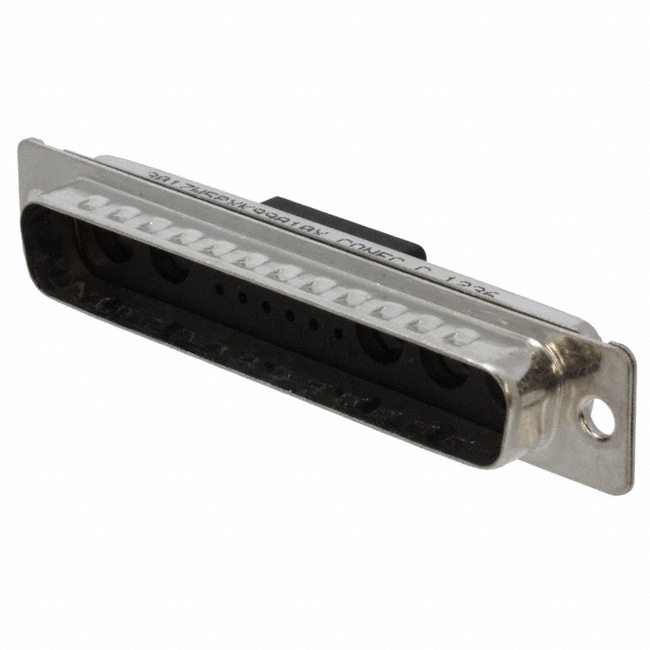

3017W5PXK99A10X

Manufacturer :

CONEC

Product Category :

D-Sub, D-Shaped Connector Housings

Feature :

Grounding Indents

Shell Finish Thickness :

320μin 8.13μm

Published :

2005

Connector Style :

D-Sub, Combo

Contact Plating :

Gold

Flange Feature :

Housing/Shell (Unthreaded)

Gender :

Male

Packaging :

Bulk

Color :

Black

Operating Temperature :

-55°C~125°C

Current Rating :

5A

Factory Lead Time :

12 Weeks

Plating :

Tin

Termination :

Crimp

Note :

Contacts Not Included

Number of Positions :

17 (12 + 5 Coax or Power)

Mount :

Free Hanging

Dielectric Material :

Polybutylene Terephthalate (PBT), Polyester

Shell Material :

Steel

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Connector Type :

Plug for Male Contacts

Contact Type :

Signal and Coax or Power

Insulation :

Insulated

Shell Material, Finish :

Steel, Tin Plated

Height :

12.93mm

Mounting Type :

Free Hanging (In-Line)

Shell Size, Connector Layout :

4 DC C - 17W5

Number of Rows :

2
