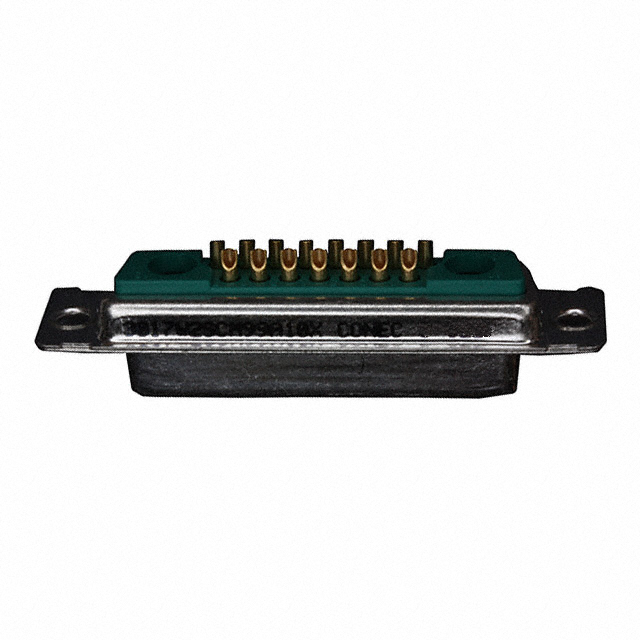

3017W2SCM99A10X
Or copy the link below:
- Mfr.Part #
- 3017W2SCM99A10X
- Manufacturer
- CONEC
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 17POS SLDR CUP
- Stock
- 65
- In Stock ：
- 65
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CONEC
- Product Category :
- D-Sub Connector Assemblies
- Current Rating :
- 5A
- Material Flammability Rating :
- UL94 V-0
- Color :
- Green
- Number of Positions :
- 17 (15 + 2 Coax or Power)
- Shell Material :
- Steel
- RoHS Status :
- ROHS3 Compliant
- Contact Finish :
- Gold
- Length :
- 53.4mm
- Flammability Rating :
- UL94 V-0
- Pbfree Code :
- yes
- Operating Temperature :
- -55°C~125°C
- Number of Conductors :
- ONE
- Body Breadth :
- 0.509 inch
- Reliability :
- COMMERCIAL
- Durability :
- 500 Cycles
- Housing Material :
- PBT
- Published :
- 2004
- Connector Type :
- Receptacle, Female Sockets
- Lead Free :
- Lead Free
- Total Number of Contacts :
- 17
- Height :
- 12.4mm
- Wire/Cable Gauge :
- 20 AWG
- Shell Material, Finish :
- Steel, Tin Plated
- Gender :
- FEMALE
- Mount :
- Free Hanging
- Mixed Contacts :
- yes
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Plating :
- Tin
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Number of Rows :
- 2
- Flange Feature :
- Housing/Shell (Unthreaded)
- Wire Gauge :
- 20 AWG
- Factory Lead Time :
- 12 Weeks
- Termination :
- Solder Cup
- Reference Standard :
- UL
- Connector Style :
- D-Sub, Combo
- Width :
- 12.9mm
- Mounting Type :
- Free Hanging (In-Line)
- Packaging :
- Tray
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Shell Size, Connector Layout :
- 3 DB B - 17W2
- Contact Material :
- COPPER ALLOY
- Contact Type :
- Signal and Coax or Power (Not Included)
- Datasheets
- 3017W2SCM99A10X
3017W2SCM99A10X Documents
D-Sub, Combo Receptacle, Female Sockets 17 (15 + 2 Coax or Power)-Position Female Signal and Coax or Power (Not Included) Solder Cup 3 DB B - 17W2 Free Hanging (In-Line) Copper Alloy Gold Steel, Tin Plated
3017W2SCM99A10X Overview
The packaging contains Receptacle, Female Sockets.This device is mounted in the Free Hanging (In-Line) position.It has been determined that a Tray case is necessary to package the product.Part Free Hanging is mounted to the part.As a result, the device runs at -55°C~125°C Operating Temperature.
3017W2SCM99A10X Features
3017W2SCM99A10X Applications
There are a lot of Conec
3017W2SCM99A10X D-Sub Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
