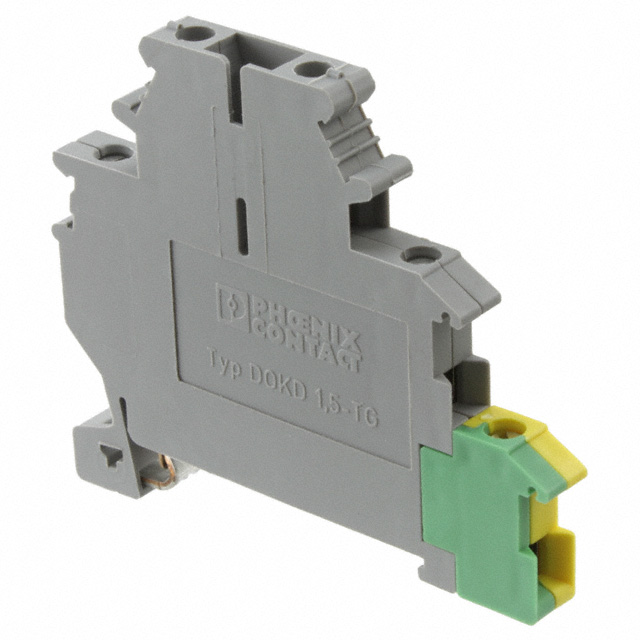

3011054

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Current :

15A

Stripping Length :

8mm

Length :

63mm

Factory Lead Time :

7 Weeks

Material - Insulation :

Polyamide (PA), Nylon

Weight :

1.399786kg

Wire/Cable Gauge :

12 AWG

Max Current Rating :

24A

Series :

CLIPLINE DOKD

Depth :

6.2mm

Number of Levels :

3; 1 Grounded

Approval Agency :

CSA, UL, cULus

Safety Approval :

UL; CSA

Voltage :

300V

Voltage - Rated :

250V

Number of Poles :

5

Termination Style :

Screw

Lead Free :

Lead Free

Flammability Rating :

UL94 V-2

Type :

Disconnect, Feed Through, Isolated

Radiation Hardening :

No

Published :

2008

Number of Circuits :

1

Disconnect Type :

Open

Pbfree Code :

yes

Color :

Gray

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Material Flammability Rating :

UL94 V-2

Wire Gauge or Range - AWG :

14-30 AWG

Wire Gauge or Range - mm² :

0.2-4mm2

Width :

6.2mm

RoHS Status :

RoHS Compliant

Wire Gauge (Min) :

24 AWG

Current Rating :

15A

Height :

62mm

Current - UL :

10A

Mount :

CABLE

ECCN Code :

EAR99

Max Supply Voltage :

250V

Wire Gauge (Max) :

24 AWG

Housing Material :

Polyamide

Voltage - UL :

300V

Housing Color :

Grey

Wire Cross Section :

4 mm2
