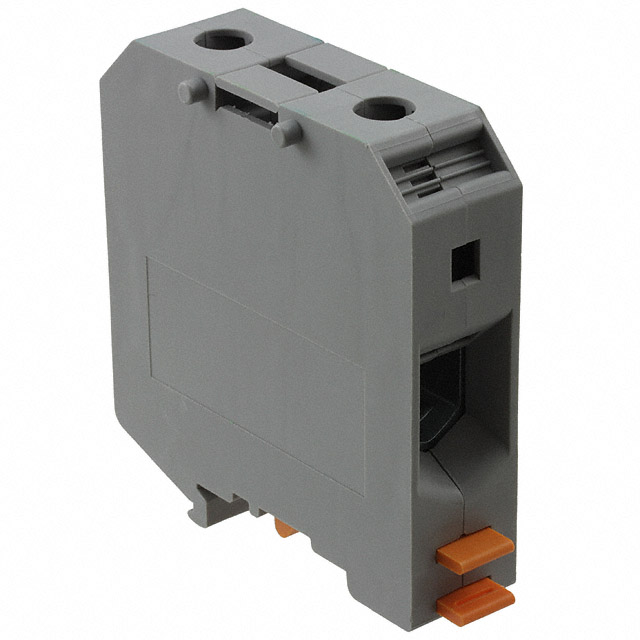

3009118
Or copy the link below:
- Mfr.Part #
- 3009118
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- CONN TERM BLK FEED THRU 1/0-6AWG
- Stock
- 23
- In Stock ：
- 23
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Din Rail, Channel
- ECCN Code :
- EAR99
- Current :
- 150A
- Width :
- 20mm
- Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Type :
- Feed Through
- Max Current Rating :
- 150A
- Housing Color :
- Grey
- Wire Gauge (Max) :
- 6 AWG
- Height :
- 83.5mm
- Stripping Length :
- 24mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Additional Feature :
- POLYAMIDE, 94V-0
- Current Rating :
- 150A
- Voltage :
- 600V
- Material - Insulation :
- Polyamide (PA), Nylon
- Approval Agency :
- CB, CSA, UL, VDE
- REACH SVHC :
- Unknown
- Published :
- 2008
- Wire Gauge (Min) :
- 0 AWG
- Voltage - Rated AC :
- 1kV
- Weight :
- 121.070012g
- Voltage - IEC :
- 1000V
- Wire/Cable Gauge :
- 0 AWG
- Length :
- 70.5mm
- Wire Gauge or Range - AWG :
- 1/0-6 AWG
- Lead Free :
- Lead Free
- Terminal Width :
- 20.0mm
- Lead Pitch :
- 20mm
- Safety Approval :
- UL; CSA
- Number of Levels :
- 1
- Voltage - Rated :
- 1kV
- Pbfree Code :
- yes
- Number of Poles :
- 2
- Wire Gauge or Range - mm² :
- 16-70mm2
- Material Flammability Rating :
- UL94 V-0
- Housing Material :
- Nylon
- HTS Code :
- 8536.69.40.40
- Series :
- CLIPLINE UKH
- Factory Lead Time :
- 13 Weeks
- Voltage - UL :
- 600V
- Color :
- Gray
- Termination Style :
- Screw
- Datasheets
- 3009118
3009118 Documents
3009118 datasheet pdf and Terminal Blocks - Din Rail, Channel product details from Phoenix Contact stock available at Xinshop
Features:
• 5mm pitch for easy installation and wiring
• 2-pole screw connection for secure and reliable connections
• DIN rail mounting for easy installation and removal
• Rated for up to 16A and 600V
• UL and CSA approved
Applications: The Phoenix Contact Terminal Blocks Din Rail, Channel 3009118 are suitable for a variety of industrial applications, including control panels, power distribution, and motor control. They are also suitable for use in hazardous locations, such as oil and gas facilities.
