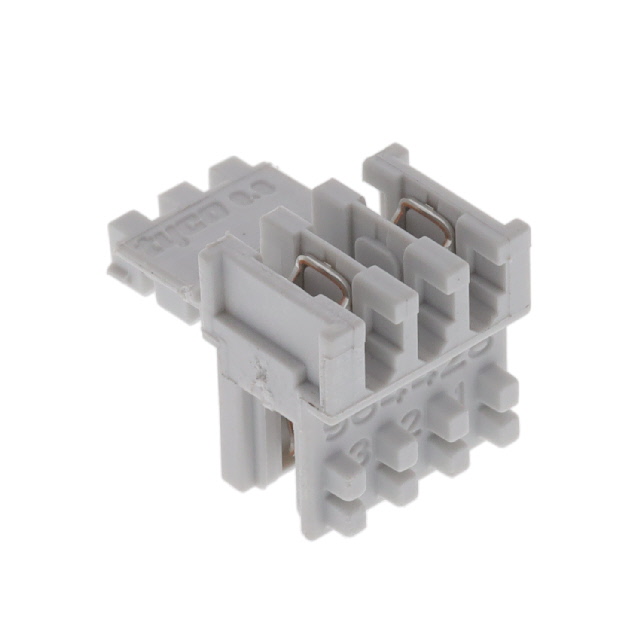

3-966480-3
Or copy the link below:
- Mfr.Part #
- 3-966480-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 3POS IDC TIN
- Stock
- 29,435
- In Stock ：
- 29,435
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Mounting Type :
- Free Hanging (In-Line)
- Wire Type :
- Discrete
- Mount :
- Free Hanging
- Max Operating Temperature :
- 110°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Color :
- Gray
- Contact Finish :
- Tin
- Cable Termination :
- IDC
- Pitch :
- 0.098 2.50mm
- Circuit Application :
- Signal
- Number of Positions :
- 3
- Number of Rows :
- 1
- Housing Material :
- PBT
- Plating Thickness :
- 12μm
- Housing Color :
- Grey
- Option :
- GENERAL PURPOSE
- Termination Type :
- IDC
- Series :
- DuoPlug
- Contact Type :
- Female Socket
- DIN Conformance :
- No
- Number of Pins :
- 2
- UL Flammability Code :
- 94V-0
- Depth :
- 10.1mm
- Mixed Contacts :
- No
- PCB Mounting Orientation :
- RIGHT ANGLE
- Packaging :
- Bulk
- ELV :
- Compliant
- Orientation :
- RIGHT ANGLE
- Gender :
- FEMALE
- Height :
- 7.35mm
- Pbfree Code :
- yes
- Factory Lead Time :
- 18 Weeks
- Published :
- 2002
- Current Rating :
- 2A
- IEC Conformance :
- No
- Total Number of Contacts :
- 3
- Contact Material :
- Copper, Tin
- Length :
- 9.9mm
- Insulation Diameter :
- 1.397 mm
- Preloaded :
- yes
- Radiation Hardening :
- No
- Filter Feature :
- No
- Min Operating Temperature :
- -40°C
- RoHS Status :
- RoHS Compliant
- Lead Free :
- Not Applicable
- MIL Conformance :
- No
- Contact Current Rating :
- 2A
- Flammability Rating :
- UL94 V-0
- Connector Type :
- Receptacle
- Datasheets
- 3-966480-3
3-966480-3 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
