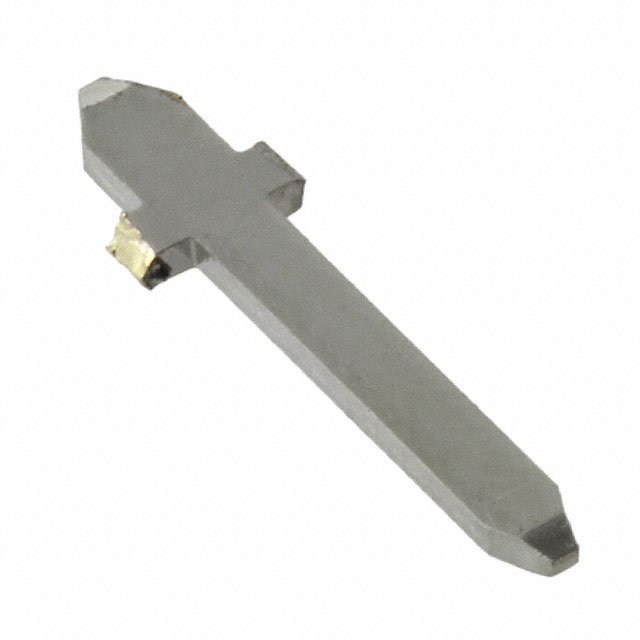

3-86147-7
Or copy the link below:
- Mfr.Part #
- 3-86147-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PIN SOLDER PCB TIN-LEAD
- Stock
- 100
- In Stock ：
- 100
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Contacts
- ELV :
- Non-Compliant
- Current Rating :
- 5A
- RoHS Status :
- Non-RoHS Compliant
- Contact Material :
- Brass
- Contact Current Rating :
- 5A
- Reach Compliance Code :
- not_compliant
- Contact Resistance :
- 12mOhm
- Contact Gender :
- Male
- Contact Finish :
- Tin-Lead
- Mount :
- Through Hole
- Shielding :
- Unshielded
- Lead Length :
- 3.18mm
- Depth :
- 2.03mm
- Insulation Resistance :
- 5GOhm
- Orientation :
- Vertical
- Connector Support Type :
- CONNECTOR ACCESSORY
- Contact Termination :
- Solder, PCB
- Pin or Socket :
- Pin
- Published :
- 1997
- Packaging :
- Tape and Reel (TR)
- Connector Type :
- Connector, PCB, Signal
- Termination :
- Solder
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Free :
- Contains Lead
- Series :
- AMPMODU Mod I
- Factory Lead Time :
- 20 Weeks
- Length :
- 19mm
- Mating Post Length :
- 10.16mm
- Contact Finish Thickness :
- 100.0μin 2.54μm
- Height :
- 780μm
- Lifecycle Status :
- ACTIVE (Last Updated: 7 months ago)
- Contact Plating :
- Lead, Tin
- Min Operating Temperature :
- -65°C
- Max Operating Temperature :
- 60°C
- Datasheets
- 3-86147-7
