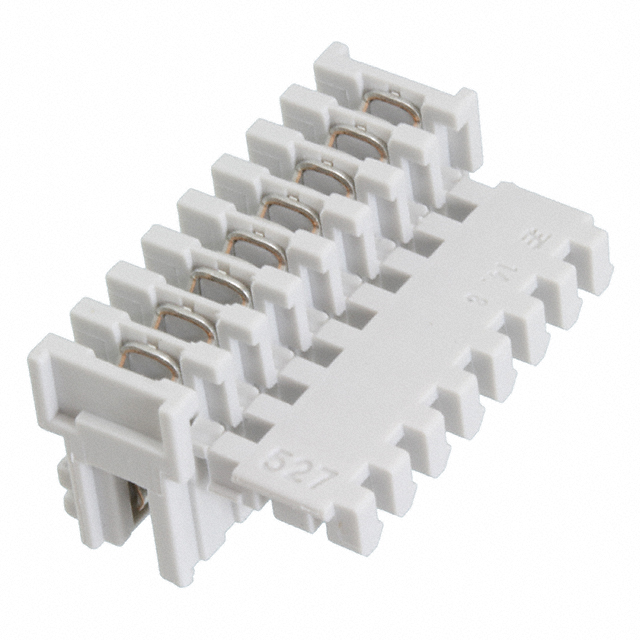

3-829868-8
Or copy the link below:
- Mfr.Part #
- 3-829868-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 8POS IDC 22AWG TIN
- Stock
- 1,735
- In Stock ：
- 1,735
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Contact Material :
- Bronze
- Mount :
- Cable, Free Hanging
- IEC Conformance :
- No
- DIN Conformance :
- No
- Height :
- 7.35mm
- Wire Type :
- Discrete
- Lead Free :
- Not Applicable
- Packaging :
- Bulk
- PCB Mounting Orientation :
- RIGHT ANGLE
- Gender :
- FEMALE
- Number of Positions :
- 8
- Reference Standard :
- UL
- Depth :
- 10.1mm
- Min Operating Temperature :
- -40°C
- Contact Current Rating :
- 2A
- UL Flammability Code :
- 94V-0
- Operating Supply Voltage :
- 63V
- Filter Feature :
- No
- RoHS Status :
- RoHS Compliant
- Circuit Application :
- Signal
- Reliability :
- COMMERCIAL
- MIL Conformance :
- No
- Number of Rows :
- 1
- Connector Type :
- Receptacle
- Length :
- 22.4mm
- Mixed Contacts :
- No
- Option :
- GENERAL PURPOSE
- Preloaded :
- yes
- Total Number of Contacts :
- 8
- Feature :
- Mates to PCB
- Mounting Type :
- Free Hanging (In-Line)
- Current Rating :
- 2A
- Series :
- DuoPlug
- ELV :
- Compliant
- Cable Termination :
- IDC
- Housing Color :
- Grey
- Published :
- 2004
- Factory Lead Time :
- 19 Weeks
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Pbfree Code :
- yes
- Wire/Cable Diameter :
- 1.397 mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Orientation :
- RIGHT ANGLE
- Pitch :
- 0.098 2.50mm
- Contact Finish :
- Tin
- Insulation Diameter :
- 1.2954 mm
- Wire Gauge :
- 22 AWG
- Approval Agency :
- UL
- Wire/Cable Gauge :
- 22 AWG
- Contact Type :
- Female Socket
- Color :
- Gray
- Plating Thickness :
- 12μm
- Flammability Rating :
- UL94 V-0
- Max Operating Temperature :
- 110°C
- JESD-609 Code :
- e3
- PCB Thickness :
- 1.4986mm
- Datasheets
- 3-829868-8
3-829868-8 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
