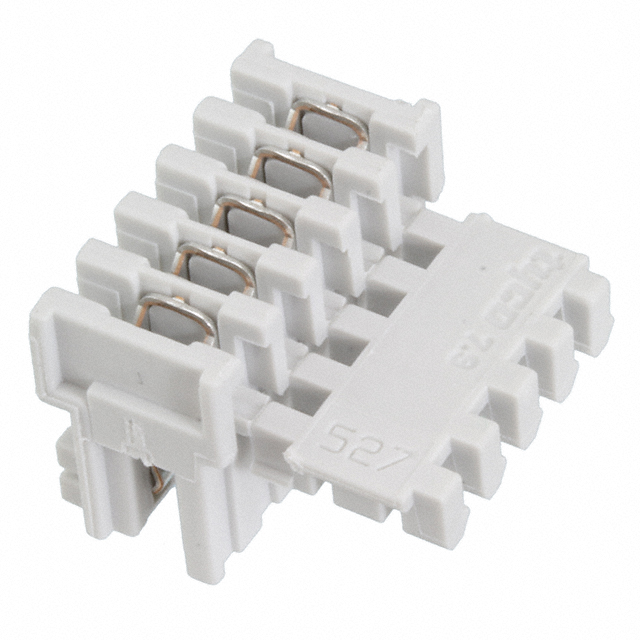

3-829868-5
Or copy the link below:
- Mfr.Part #
- 3-829868-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 5POS IDC 22AWG TIN
- Stock
- 23,762
- In Stock ：
- 23,762
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Radiation Hardening :
- No
- Approval Agency :
- UL
- Pbfree Code :
- yes
- Feature :
- Mates to PCB
- Contact Current Rating :
- 2A
- IEC Conformance :
- No
- Gender :
- FEMALE
- Published :
- 2004
- Housing Color :
- Grey
- Orientation :
- RIGHT ANGLE
- Pitch :
- 0.098 2.50mm
- Contact Finish :
- Tin
- Current Rating :
- 2A
- RoHS Status :
- RoHS Compliant
- Series :
- DuoPlug
- Packaging :
- Bulk
- DIN Conformance :
- No
- Flammability Rating :
- UL94 V-0
- Filter Feature :
- No
- ELV :
- Compliant
- Mounting Type :
- Free Hanging (In-Line)
- Contact Material :
- Bronze
- Wire/Cable Diameter :
- 1.397 mm
- Number of Positions :
- 5
- Wire Gauge :
- 22 AWG
- MIL Conformance :
- No
- Depth :
- 10.1mm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Reliability :
- COMMERCIAL
- Mixed Contacts :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Color :
- Gray
- Wire/Cable Gauge :
- 22 AWG
- Max Operating Temperature :
- 110°C
- Plating Thickness :
- 12μm
- Circuit Application :
- Signal
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Total Number of Contacts :
- 5
- PCB Thickness :
- 1.4986mm
- Factory Lead Time :
- 20 Weeks
- Insulation Diameter :
- 1.2954 mm
- Height :
- 7.35mm
- Number of Rows :
- 1
- Option :
- GENERAL PURPOSE
- Contact Type :
- Female Socket
- Operating Supply Voltage :
- 63V
- Cable Termination :
- IDC
- Reference Standard :
- UL
- Body Breadth :
- 0.289 inch
- Length :
- 14.9mm
- Lead Free :
- Not Applicable
- Min Operating Temperature :
- -40°C
- Wire Type :
- Discrete
- ECCN Code :
- EAR99
- UL Flammability Code :
- 94V-0
- Preloaded :
- yes
- Connector Type :
- Receptacle
- Mount :
- Free Hanging
- Datasheets
- 3-829868-5
3-829868-5 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
