3-794682-2
Or copy the link below:
- Mfr.Part #
- 3-794682-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS
- Stock
- 3,601
- In Stock ：
- 3,601
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- MIL Conformance :
- No
- Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Contact Finish - Mating :
- Gold
- RoHS Status :
- RoHS Compliant
- Contact Current Rating :
- 5A
- Number of Positions Loaded :
- All
- Insulation Height :
- 0.364 9.25mm
- VDE Tested :
- yes
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Type :
- Male Pin
- Housing Material :
- Nylon
- Reliability :
- COMMERCIAL
- Fastening Type :
- Locking Ramp
- Packaging :
- Tray
- Number of Rows :
- 2
- Number of Conductors :
- ONE
- Plating Thickness :
- 2.54μm
- Lead Free :
- Lead Free
- Number of Ports :
- 1
- Contact Shape :
- Square
- Connector Type :
- Header
- Max Voltage Rating (AC) :
- 250V
- Sealable :
- No
- Length :
- 7mm
- Published :
- 2008
- Current Rating (Amps) :
- Varies by WireGAuge
- ELV :
- Compliant
- Durability :
- 75 Cycles
- Applications :
- GENERAL PURPOSE
- Contact Material :
- Brass
- Pitch :
- 2.9972mm
- Height :
- 13.97mm
- Depth :
- 8.67mm
- Feature :
- Board Lock
- Shrouding :
- Shrouded - 4 Wall
- Insulation Material :
- Polyamide (PA), Nylon
- Circuit Application :
- Power
- PCB Contact Pattern :
- RECTANGULAR
- Orientation :
- Vertical
- Width :
- 6.86mm
- Approval Agency :
- CSA
- Mixed Contacts :
- No
- Contact Finish - Post :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number Of PCB Rows :
- 2
- Contact Plating :
- Tin, Gold
- Empty Shell :
- No
- DIN Conformance :
- No
- Operating Supply Voltage :
- 250V
- Current Rating :
- 5A
- IEC Conformance :
- No
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Number of Terminations :
- 2
- Filter Feature :
- No
- Mounting Type :
- Through Hole
- Material Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Factory Lead Time :
- 19 Weeks
- Style :
- Board to Cable/Wire
- UL Flammability Code :
- 94V-0
- Operating Temperature :
- -40°C~105°C
- Pbfree Code :
- yes
- Insulation Color :
- Black
- Series :
- Micro MATE-N-LOK
- Mount :
- Through Hole
- Contact Retention :
- Without
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Length - Post :
- 0.125 3.18mm
- Contact Gender :
- Male
- Polarization Key :
- POLARIZED HOUSING
- PCB Thickness :
- 1.57mm
- Datasheets
- 3-794682-2

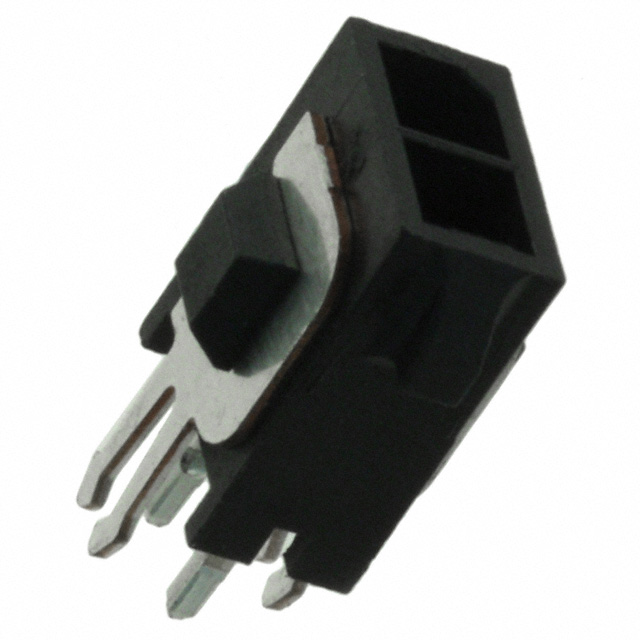

Micro MATE-N-LOK Series 2-Row Header Solder Brass Tray Through Hole Gold Polyamide (PA), Nylon Board to Cable/Wire 0.364 9.25mm Height
3-794682-2 Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Tray case is necessary to package the product.There is a product in the Micro MATE-N-LOK Series.The device has 1 ports that can be used to manage a variety of tasks.The device could be used for the following application: General Purpose.There are a number of advantages to its Board Lock feature.Part Through Hole is mounted to the part.The chip is terminated with a 2.250V is the operating supply voltage for this memory.As a result, the device runs at -40°C~105°C Operating Temperature.
3-794682-2 Features
2 basic kinds of terminations
Micro MATE-N-LOK series
